Due to the hang type,conveyed material does not accumulate and the centering function continues for a long time.

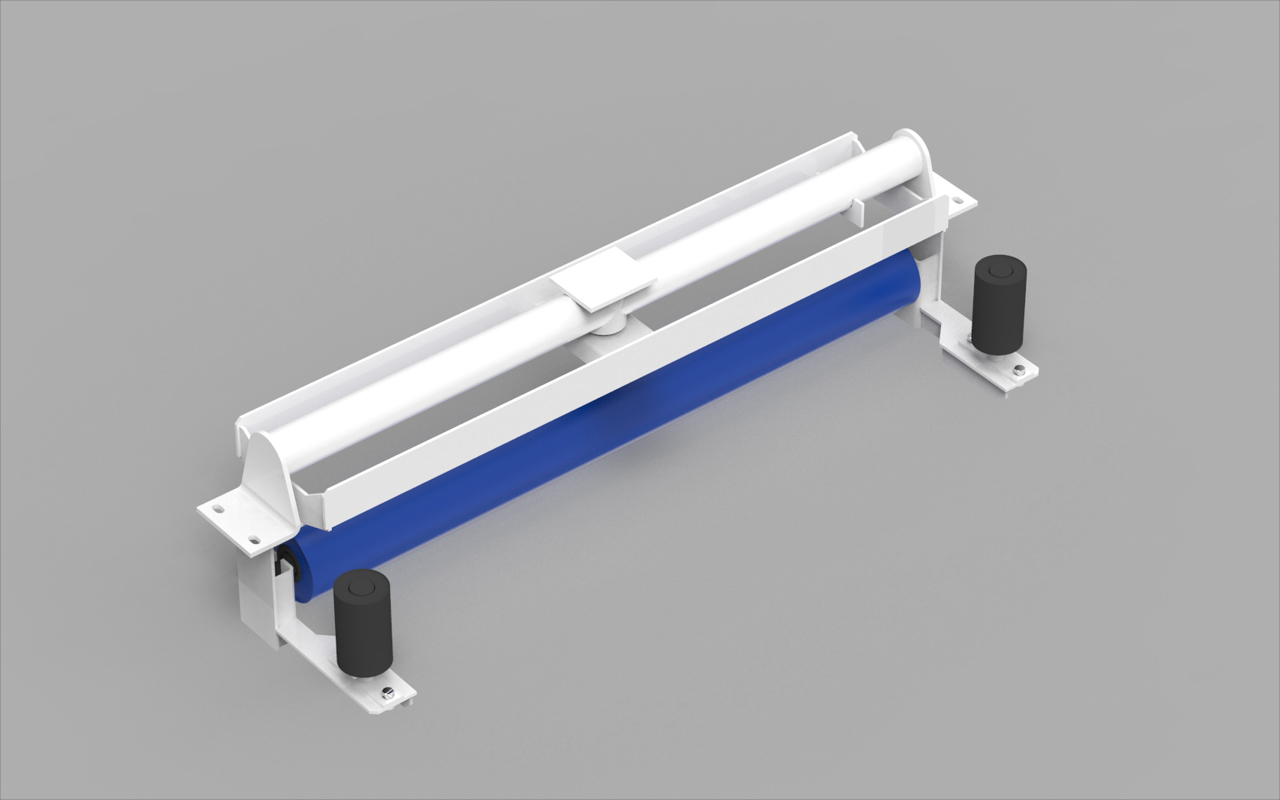

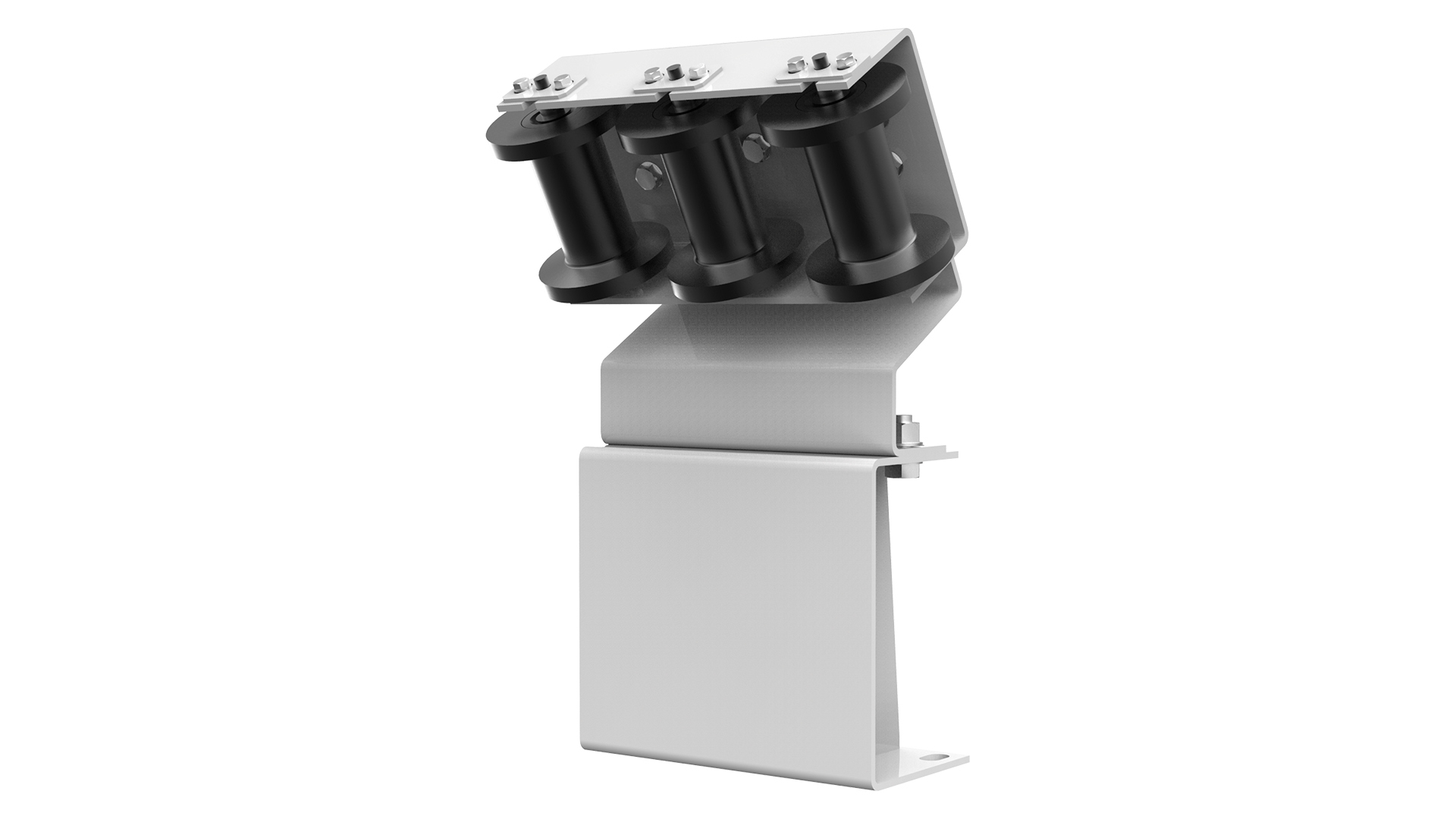

Unlike the conventional return-side self-centering idler, this is a "hanging type" with a slewing frame at the top of the roller.
This is a mistracking countermeasure product that reduces the premature deterioration of the automatic centering function due to the accumulation of conveyed materials around the slewing shaft.
Before - After

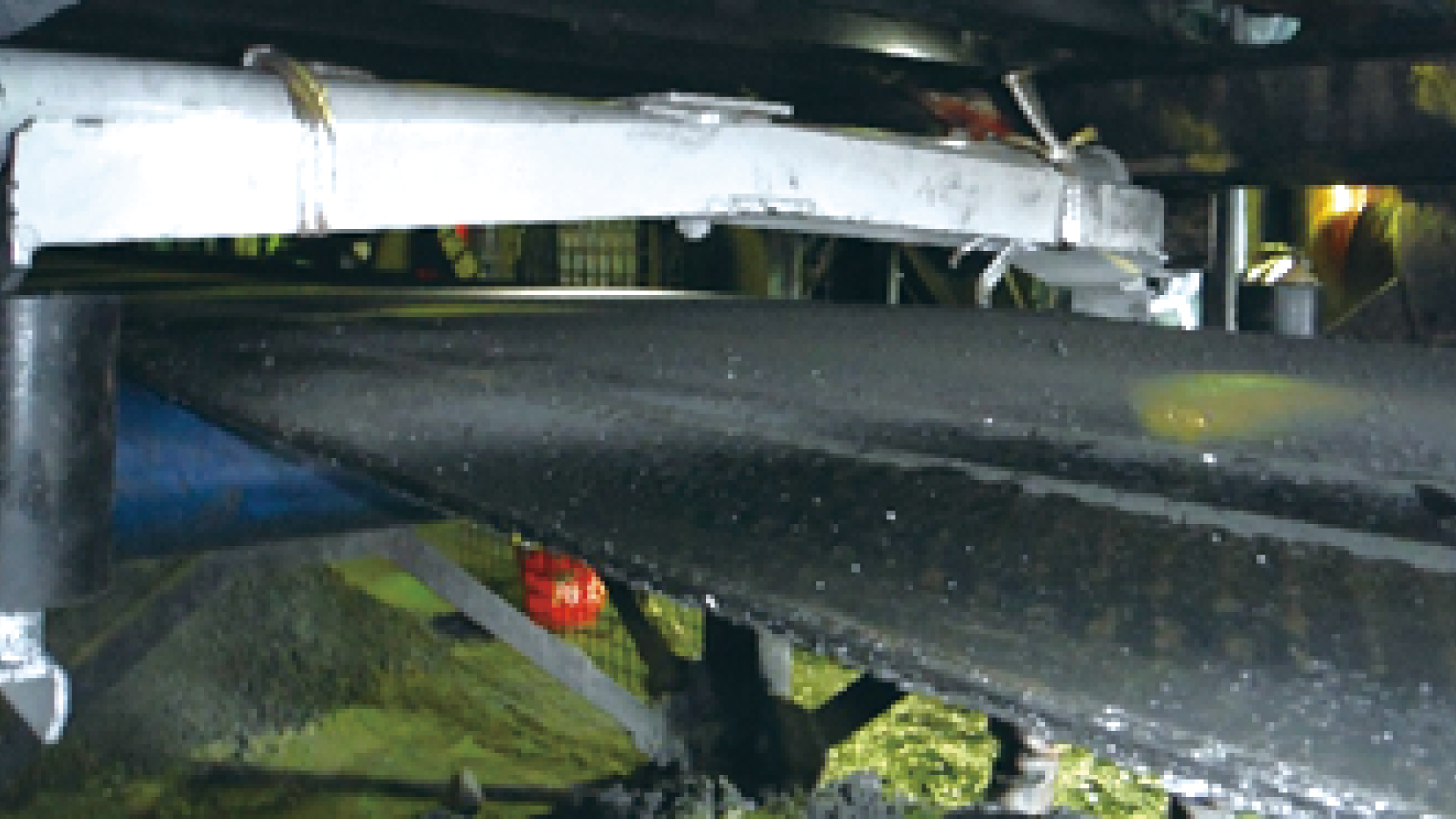

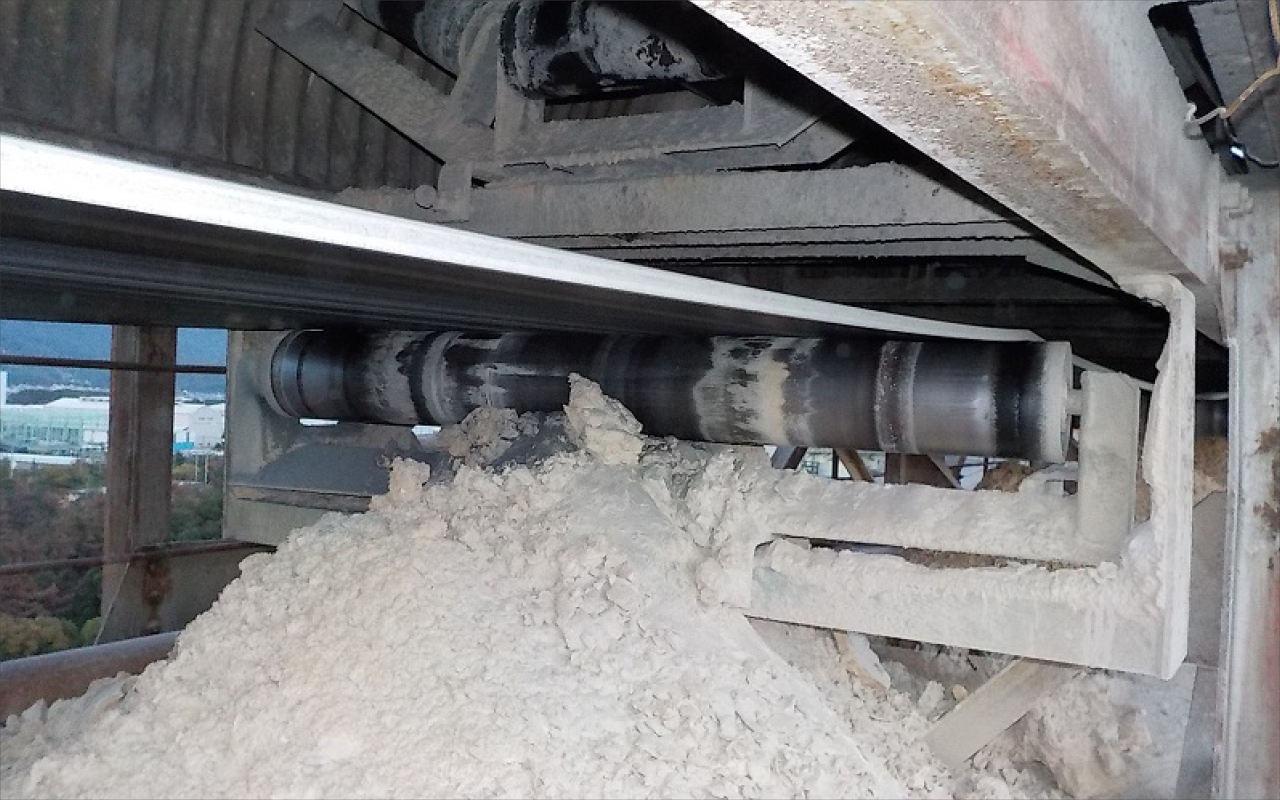

Before
Deposition on the lower part of the roller buried the pivot shaft in the center of the frame, and the centering function was stopped.

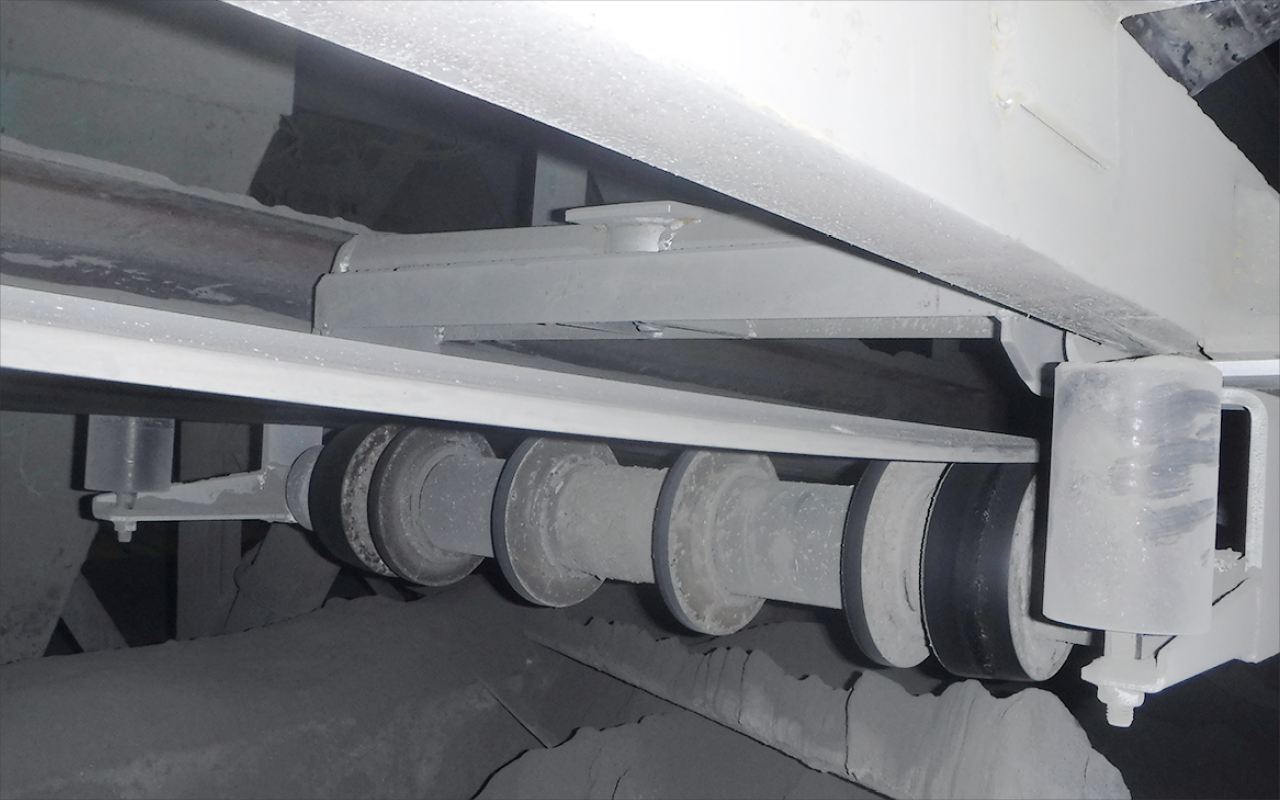

After
There is no concern of accumulation at the upper part of the roller for the slewing part, and we succeeded in reducing the accumulation by adopting a
load drop prevention roller.
Product Features
-
Pivoting frame on the upper part of the roller
Depending on the arrangement of the stand frame to the upper part of the roller, conveyed material does not accumulate around the pivot shaft, and the automatic centering function continues for a long time.
-

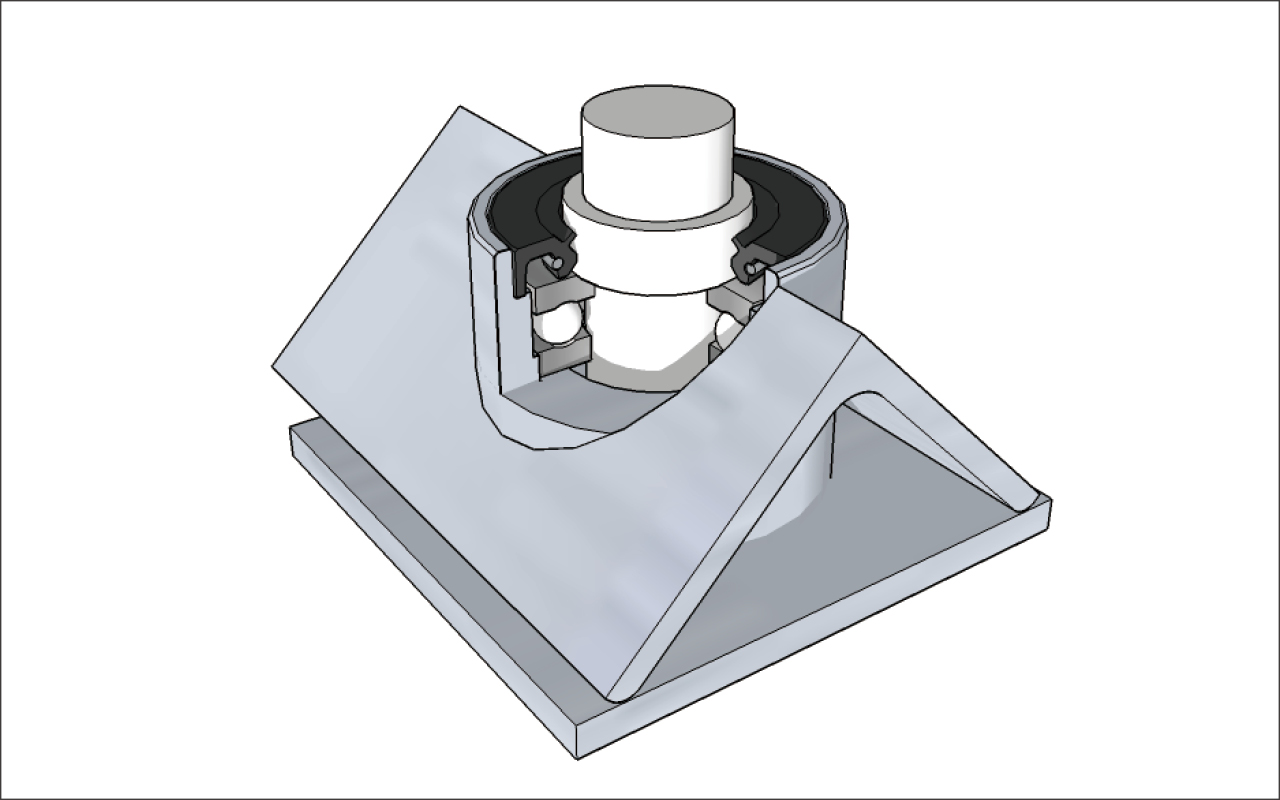

Improved performance and strength of slewing parts
Thrust bearings are adopted for the slewing part, and the center pin is thickened and reinforced.
Smoother and more stable frame swiveling is possible. -

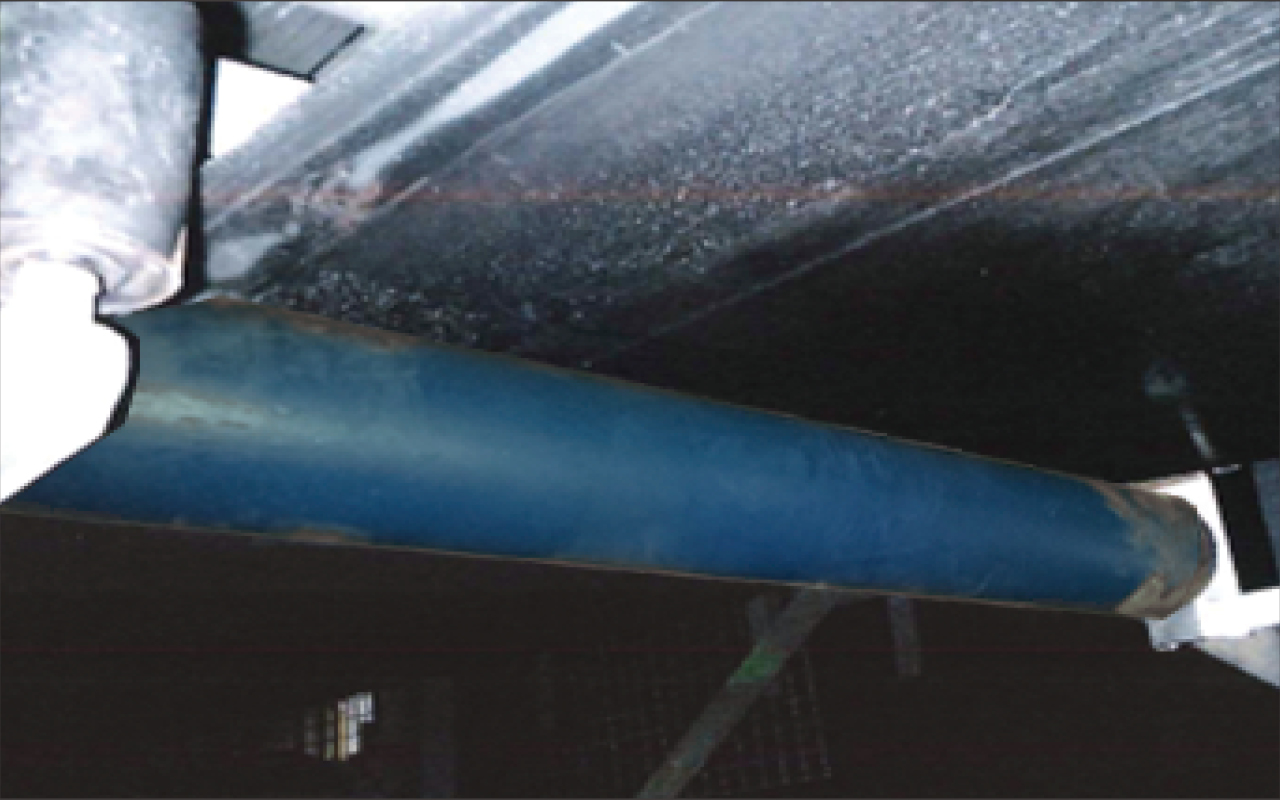

Prevents adhesion of transported objects to rollers
Nonstick Roller baked with 32-degree hardness soft rubber eliminates roller adhesion problems of high-viscosity conveyed materials.
