solution products

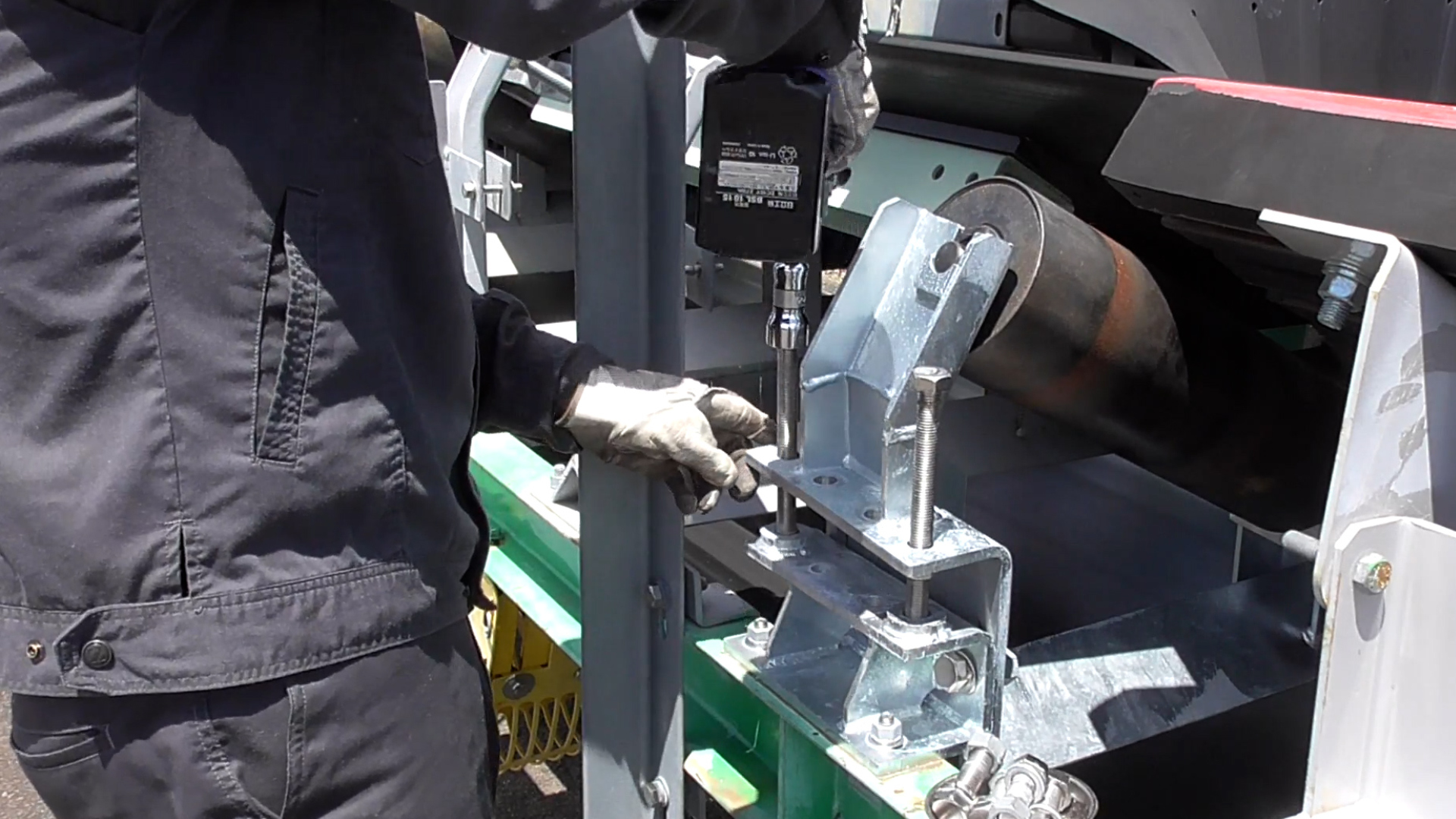

JACK DOWN CARRIER IDLER
New concept of lowering the stand! to a narrow pitch area
※Because the stand can be lowered, rollers can be safely replaced in a short time even in areas with a narrow roller pitch, such as connecting sections.
The introduction of this product makes it easier to replace rollers, which prevents damaged rollers from being left unattended and also contributes to longer belt life.
Product Features
-

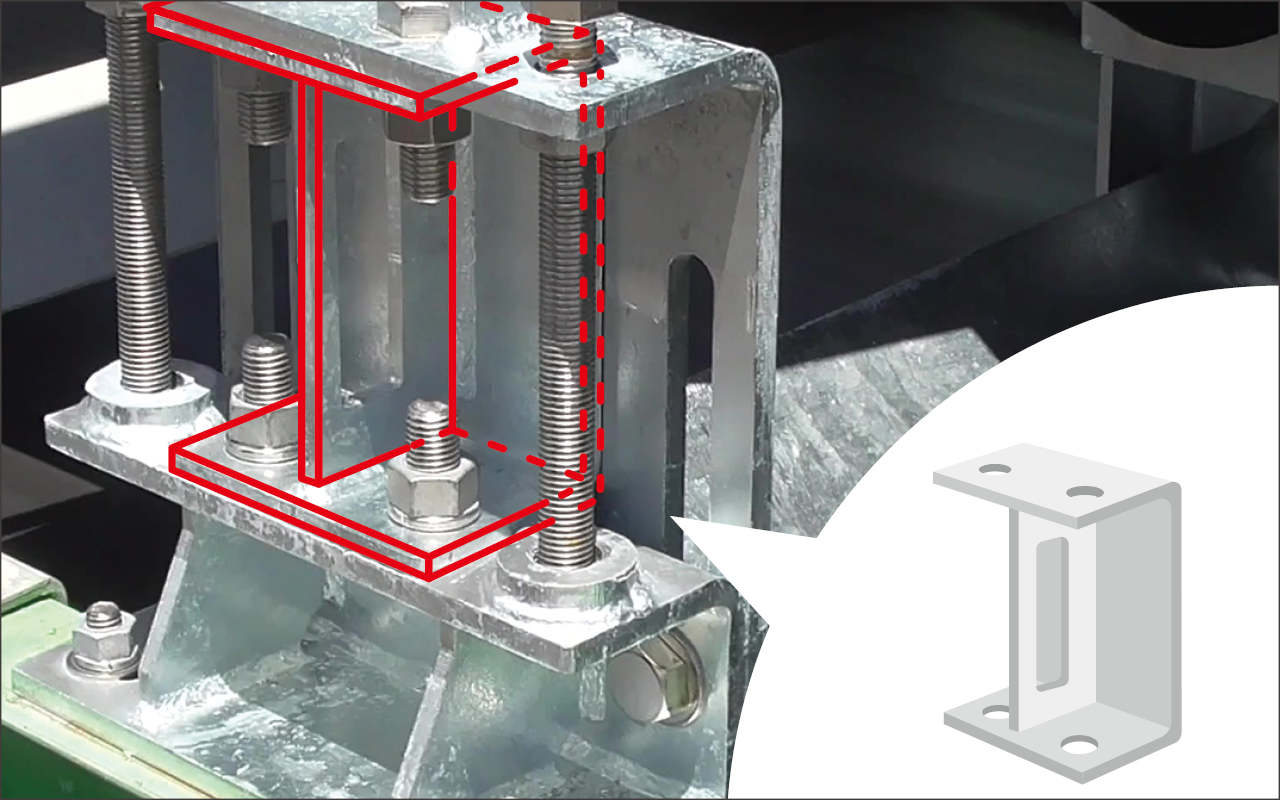

Shock-resistant structure for use under chute
Since it is structured to receive a load with a "U-shaped bracket" during operation, it can be used even under a transit chute or in other places with a large impact.

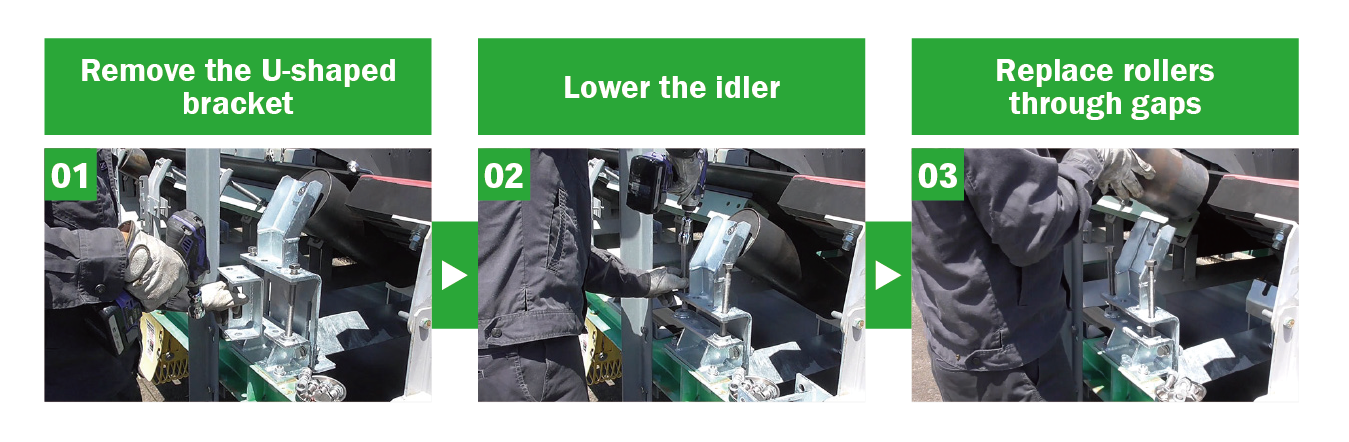

A gap is created b between the belt and the roller due to the descent of the Idler !
Remove the U-shaped Lower the idler !
※Do the same work on both sides of the stand at the same time. After replacing the rollers, tighten all the bolts in reverse order.
