Turn around, immediate replacement!Effective for mistracking and spillage!
This is a left-right split return idler that can be replaced from one roller on one side and is compact and convenient to carry.
The roller replacement method is very simple.

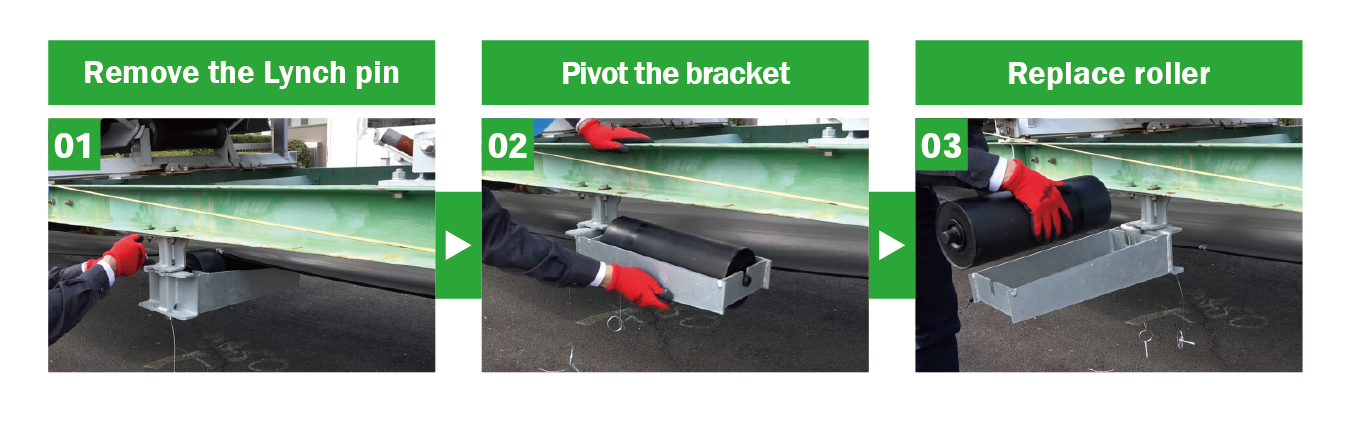

Simply remove the two lynch pin on the bracket manually and swivel them toward the walkway about the fulcrum shaft for immediate replacement.
It is an excellent product that can reduce falling ore and adjust belt mistrack by setting forward and backward inclination.
Product introduction video
Product Features
-
Can be set to forward or backward tilt

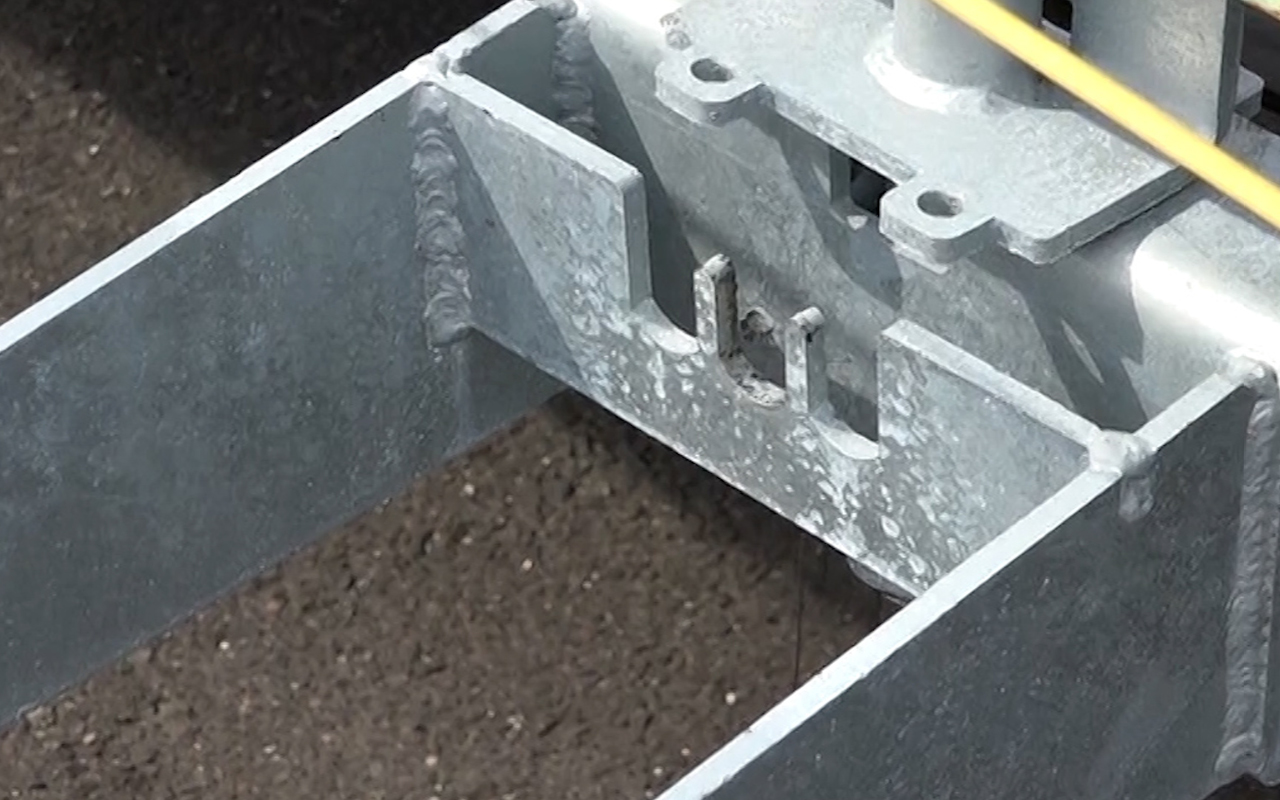

Three bearings are provided inside the bracket on the fulcrum shaft side for easy adjustment of forward inclination,standard and backward inclination, and
each roller angle. -

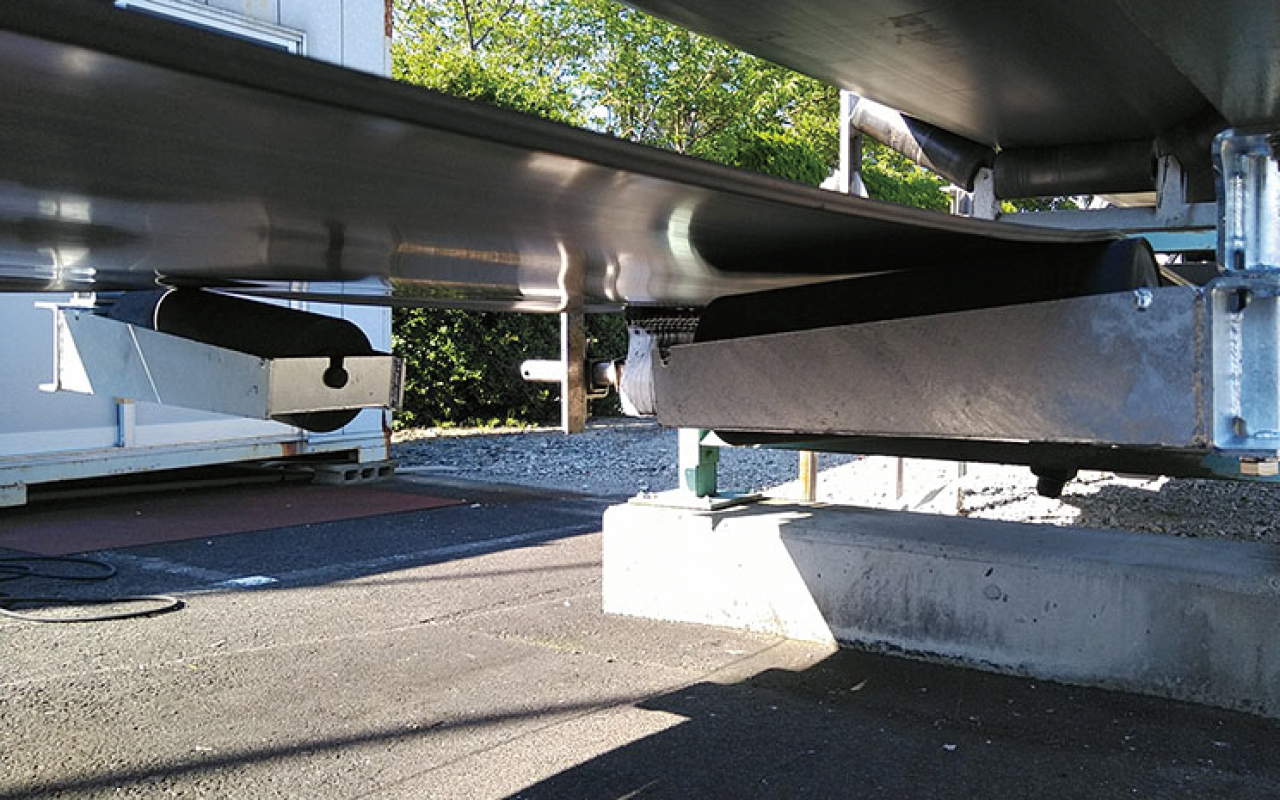

Only left and right contacts reduce spillage
Due to the left-right split type idler, contact with the roller does not occur at the center of the belt, and it is effective in reduce the falling of transported materials.
-

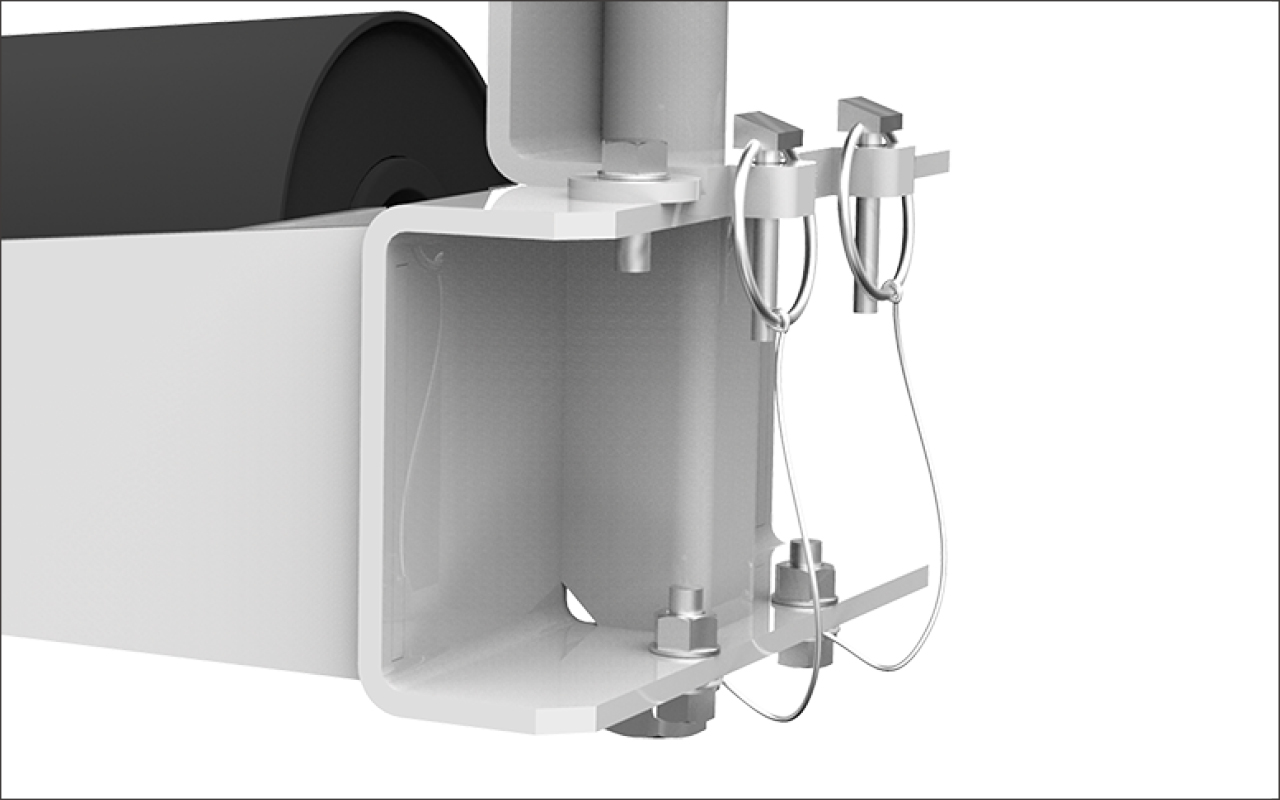

Lynch pin eliminates the need for replacement tools!

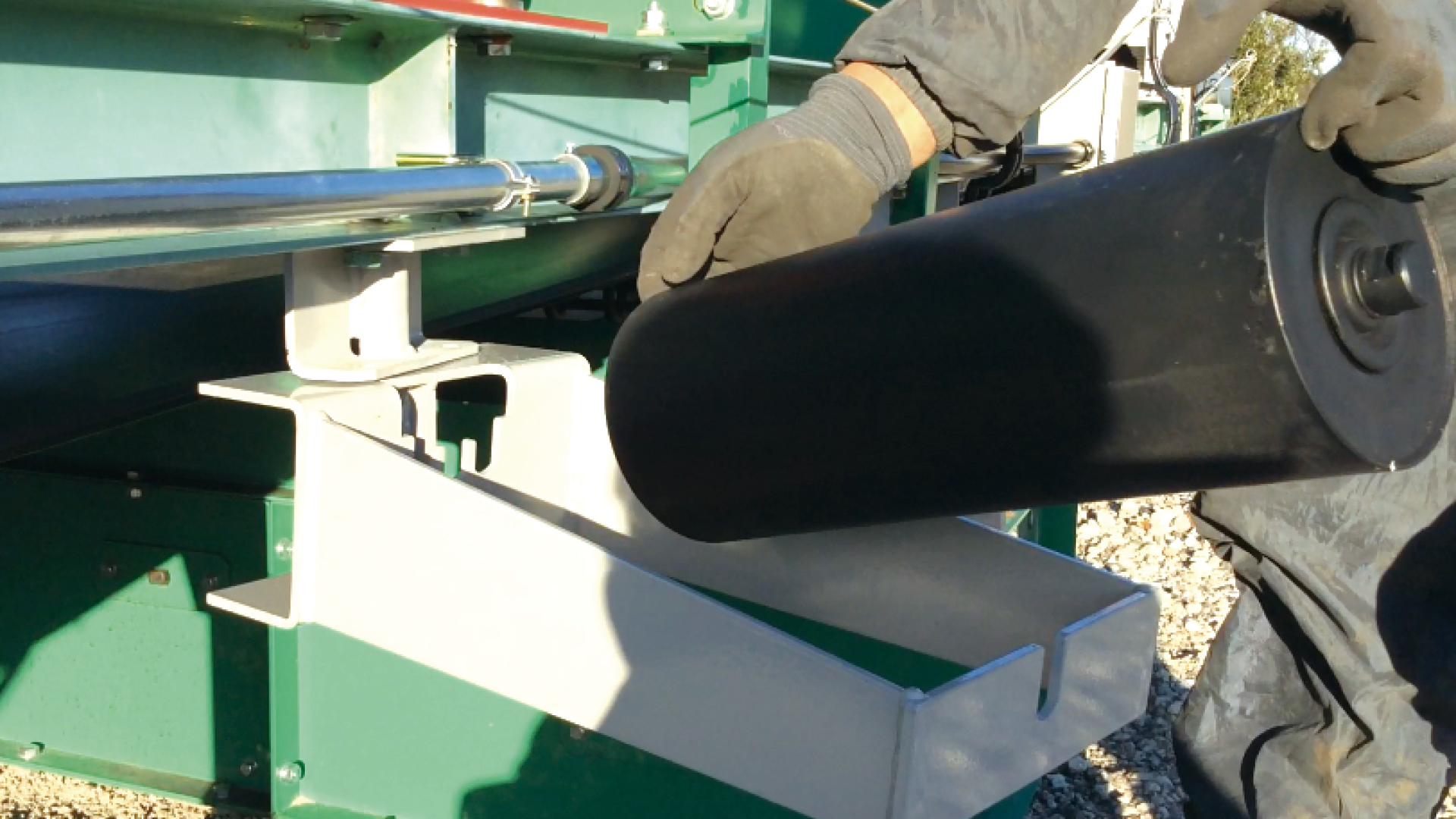

※Simply manually remove two lynch pins from the bracket and pivot the fulcrum shaft to the side of the corridor for quick roller replacement.
Bracket swivel, roller replacement from one side OK!
