Correct mistracking from the return side by belt repulsion force

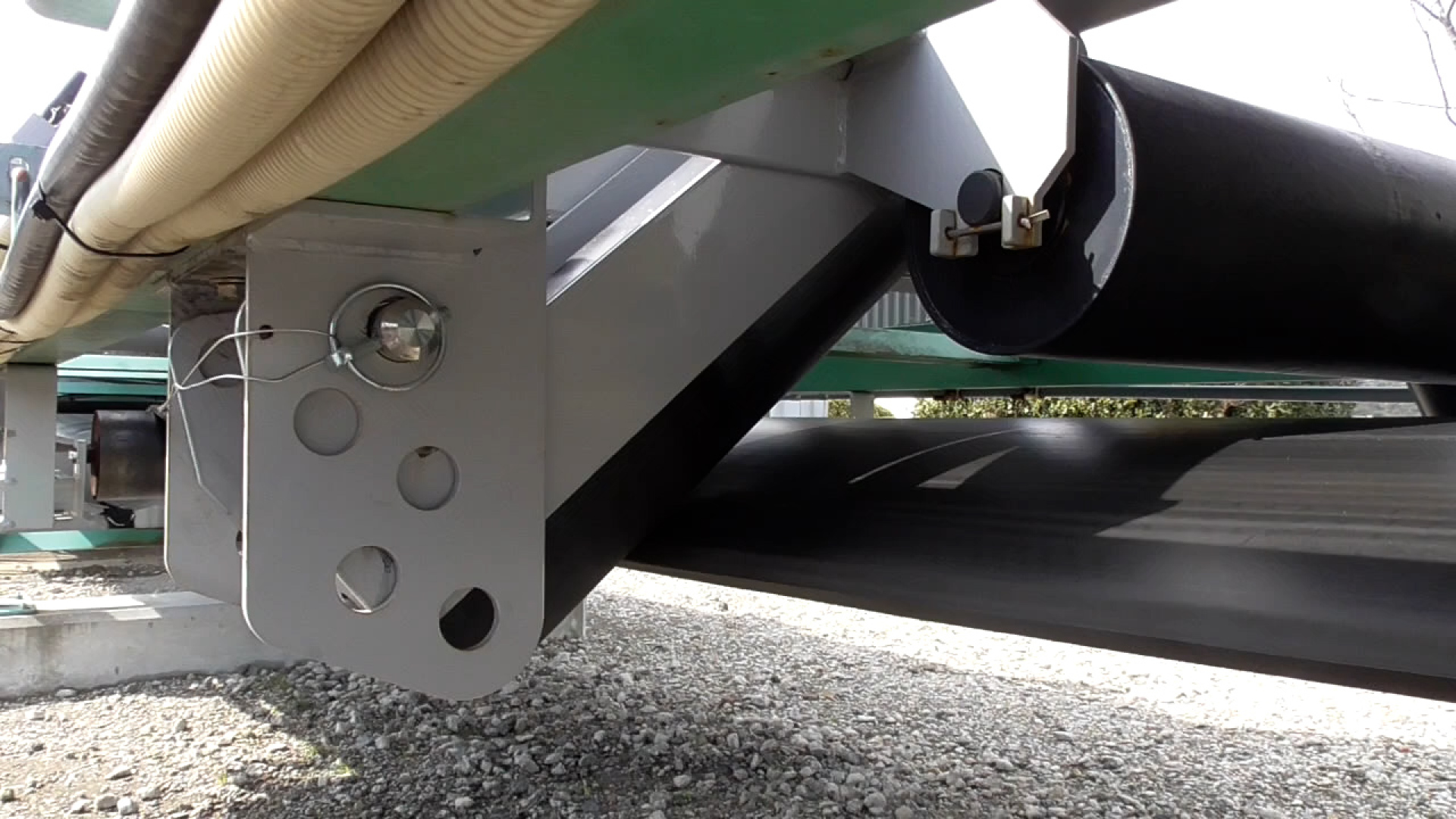

This product corrects mistracking by utilizing the belt's own repulsive force generated by pressing the end of the belt against the trough at the return side
of the conveyor.
Product Features
-

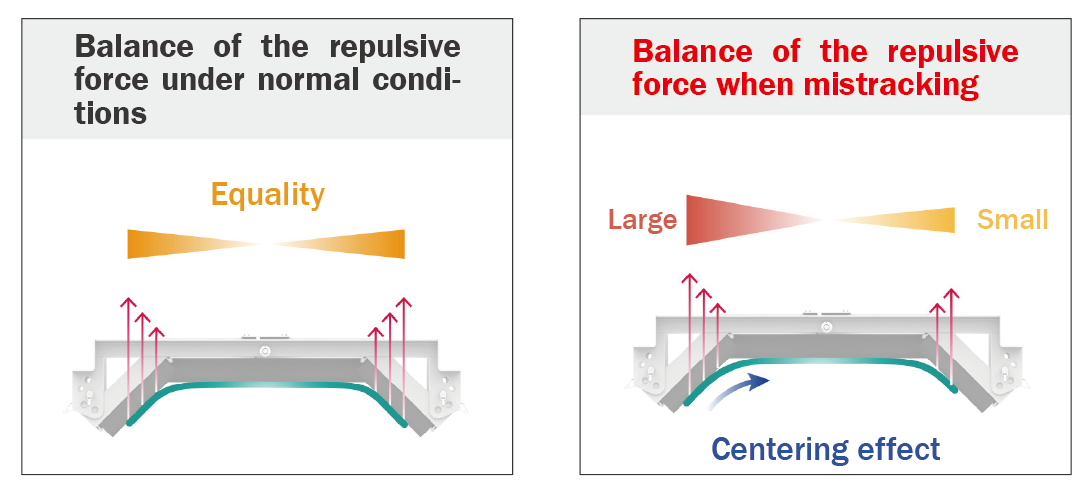

Utilizes the belt's own "Want to return to the center" action
By pushing hard on one side of the trough, centering effect is generated from the repulsive force of the belt, and mistracking is adjusted.
Due to the increased amount of friction caused by tension, the force that attempts to escape from it is also one of the centering effects of this product. -

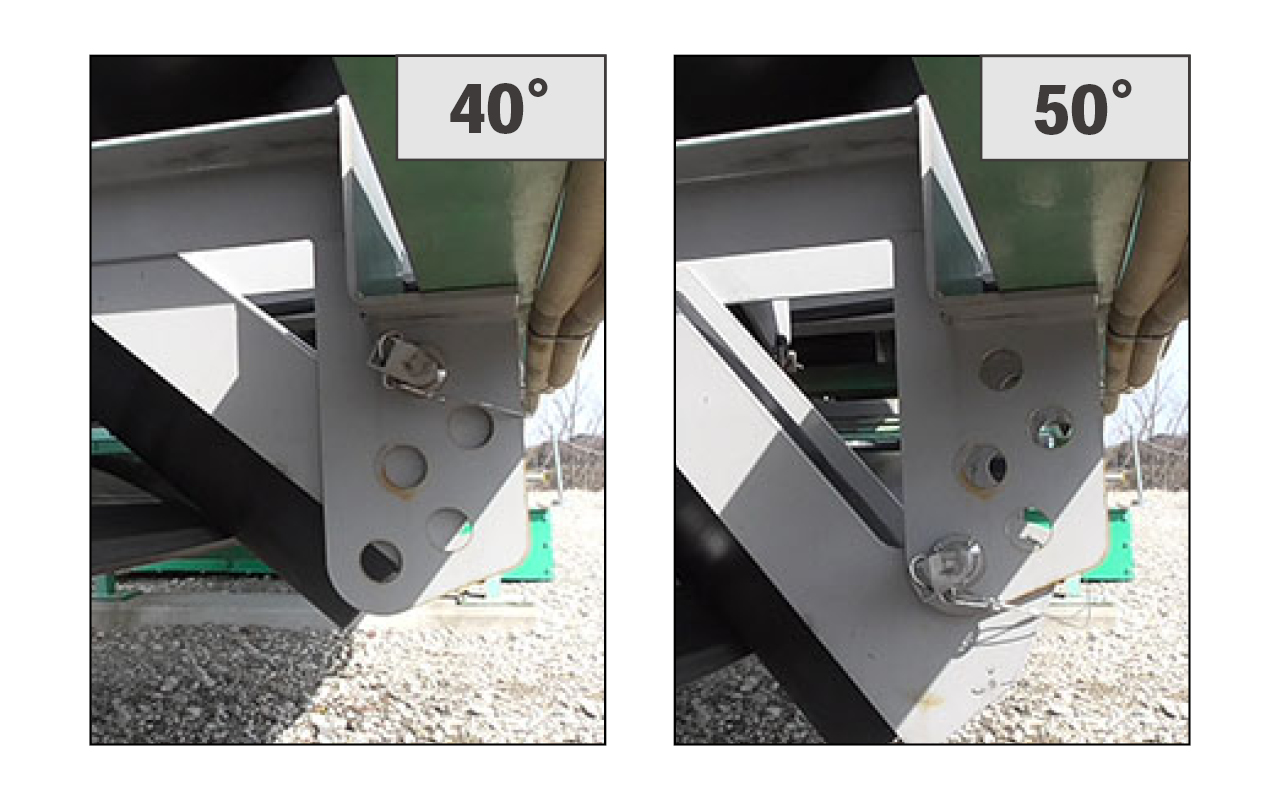

Angle adjustment of the pressing allowance is possible.
Normally, the 45-degree holding allowance can be freely adjusted between 40 to 50 degrees by inserting and removing the fixing pin.
-

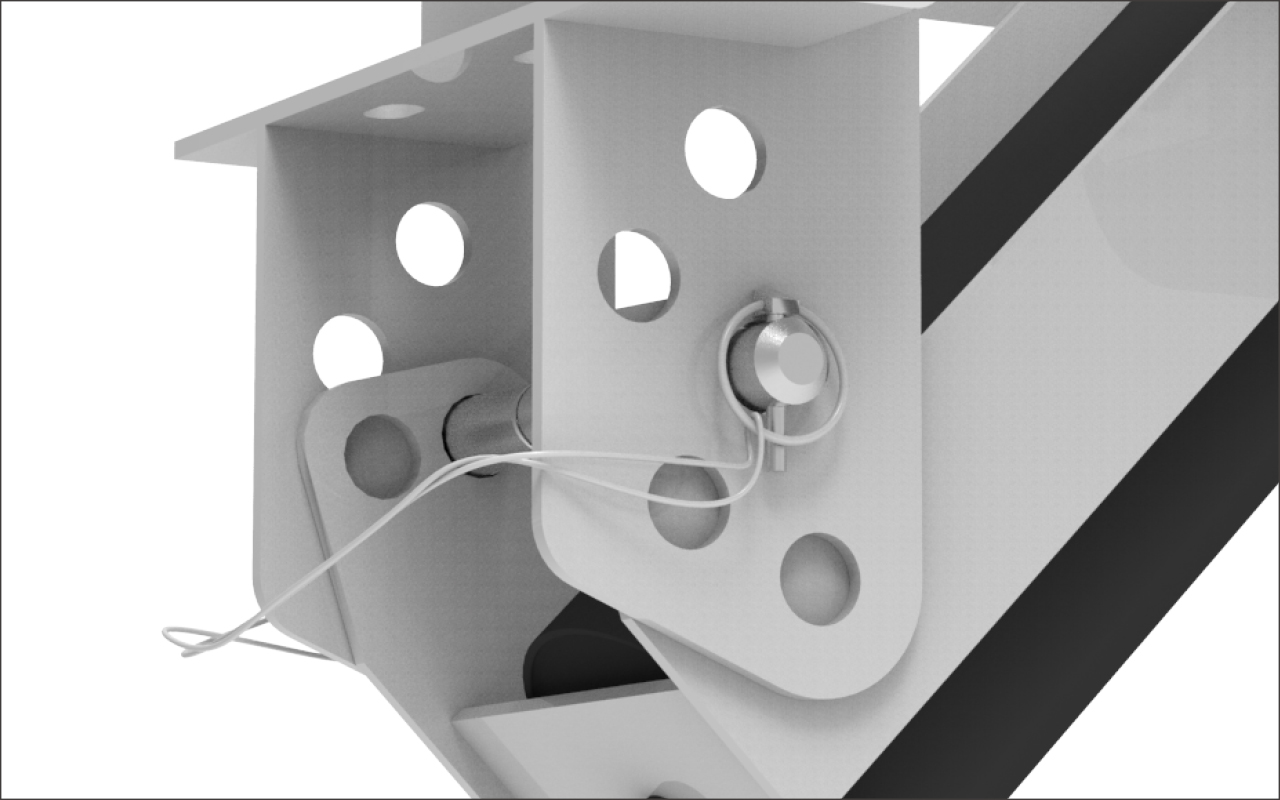

No tools required for adjustment by adopting a Lynchpin!
※Angle adjustment of presser bar can be easily done without tools by lynch pin.

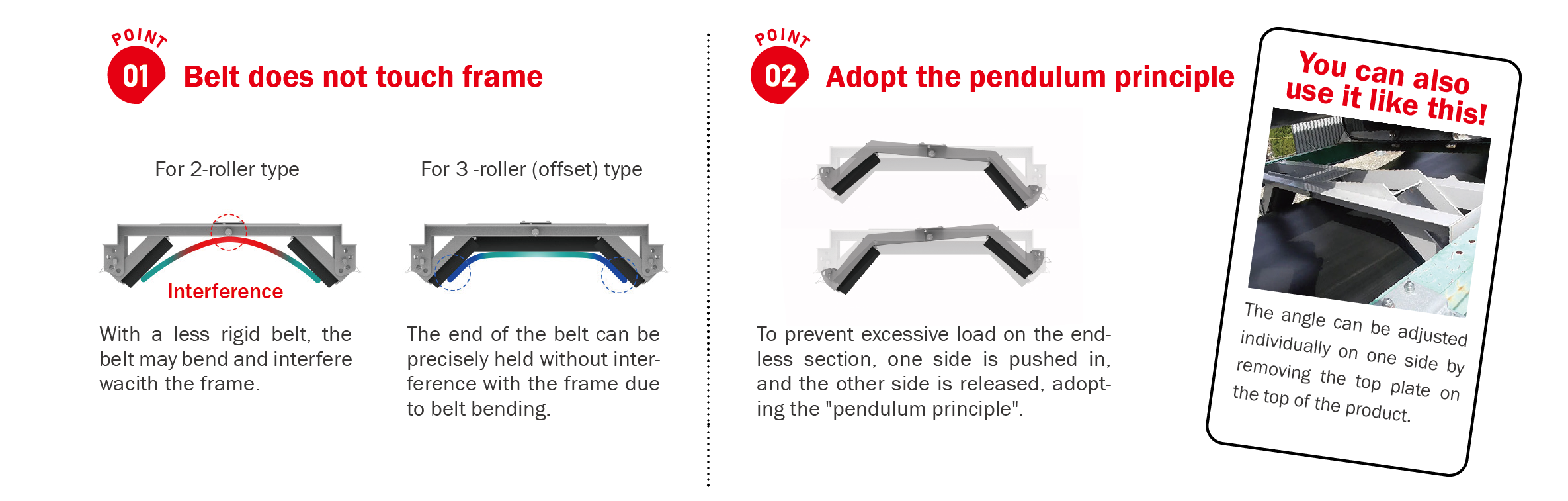

It doesn’t just push it in! Belt-friendly two mechanisms
