solution products
Achievement of adoption in a wide range of industries Strongest partners for mistracking countermeasures

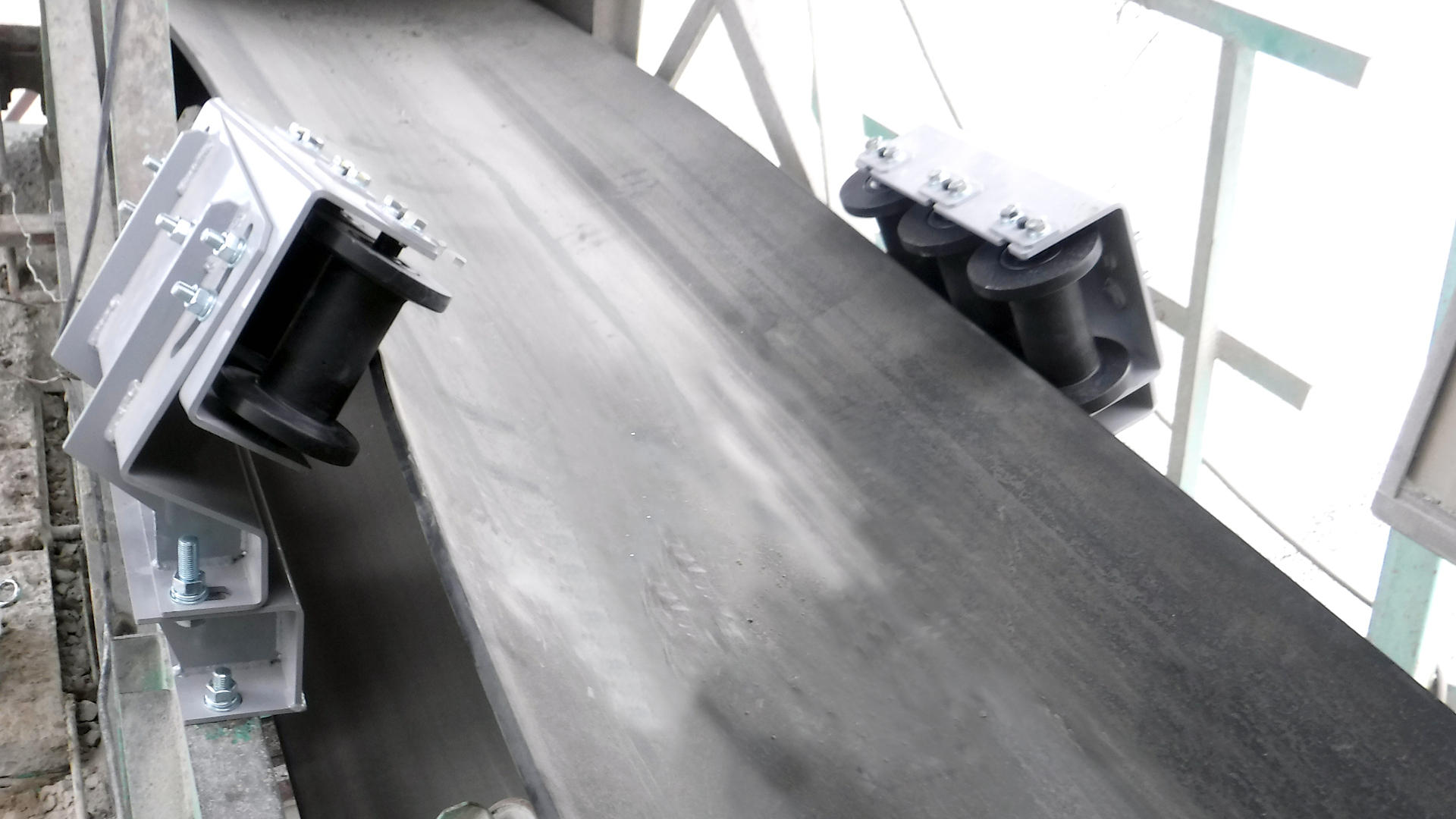

JRC's proprietary anti-mistrack product with three guide rollers of unique shape, like the "drum" of a Japanese musical instrument.

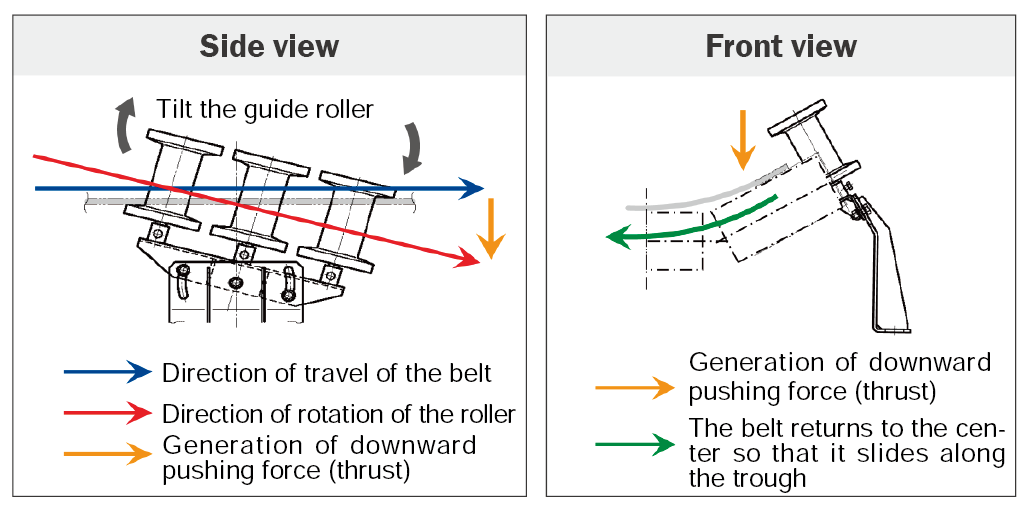

A slight tilt of the guide in the belt traveling direction generates a downward pushing force (thrust), which makes use of the mistrack adjustment principle that the belt returns to the center of the conveyor so that it slides along the trough.
Product introduction video
Product Features
-

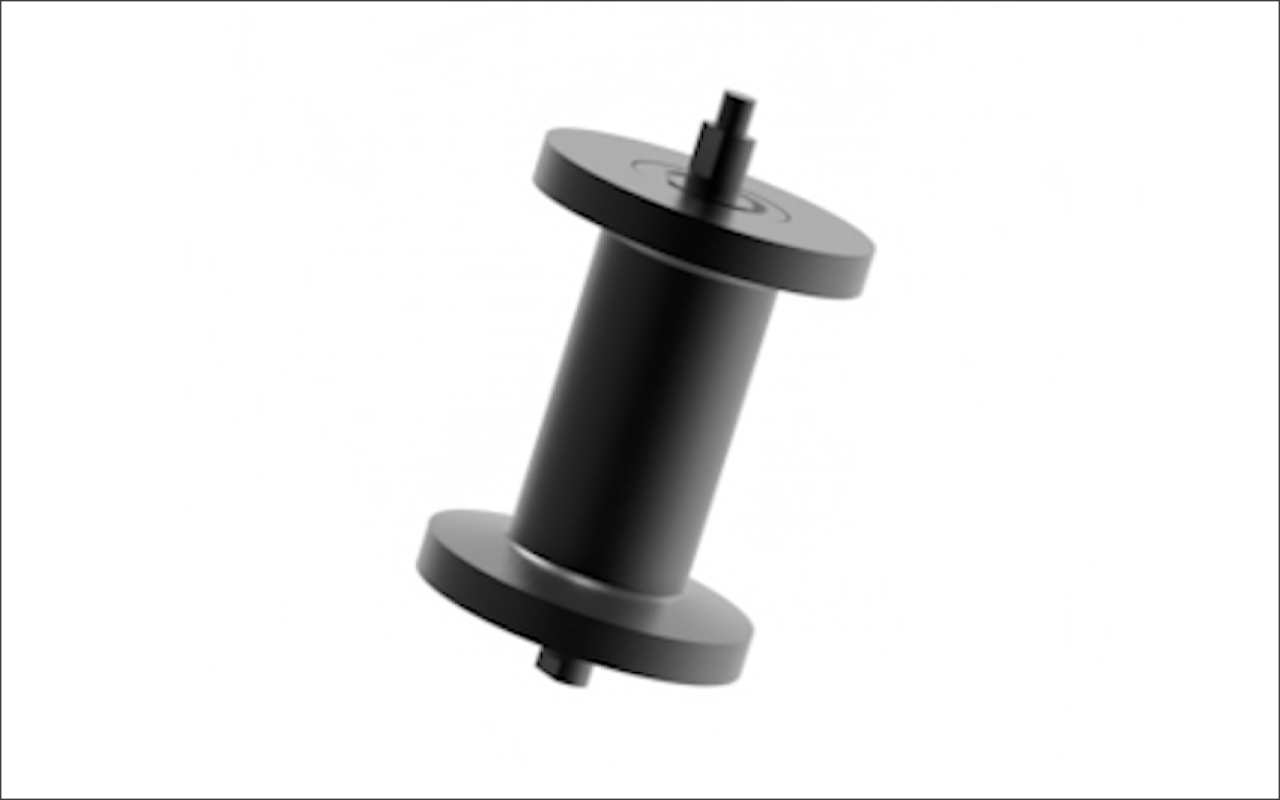

Unique shape of guide roller

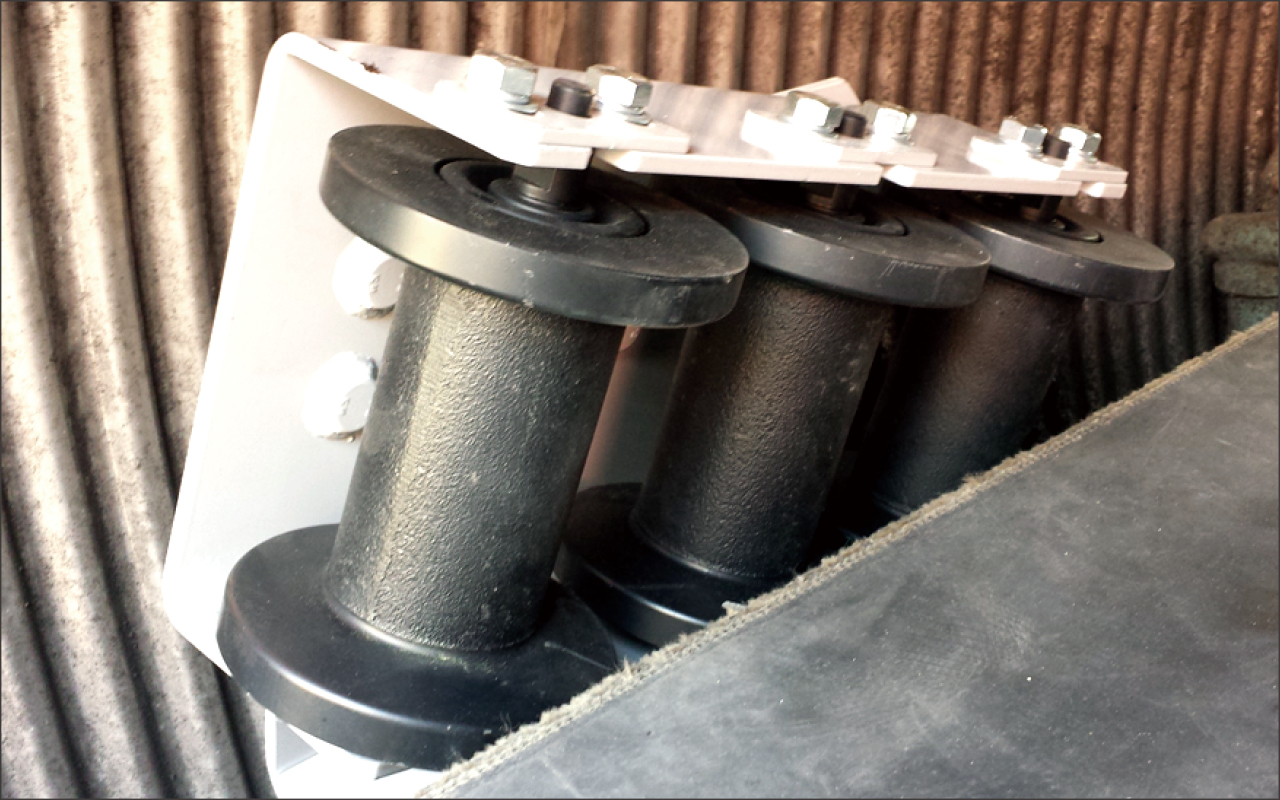

Three drum-shaped guide rollers are arranged so that the upper and lower flanges prevent the belt from riding up and falling,and they are turned in the belt traveling direction to suppress mistracking.
-
"Cast iron" resistant to wear
A guide roller made of ductile Cast Iron (FCD450) with excellent wear resistance is adopted.
Effective in belt mistracking and misalignment adjustment over a long period of time. -
※Adjustable serpentine allowance

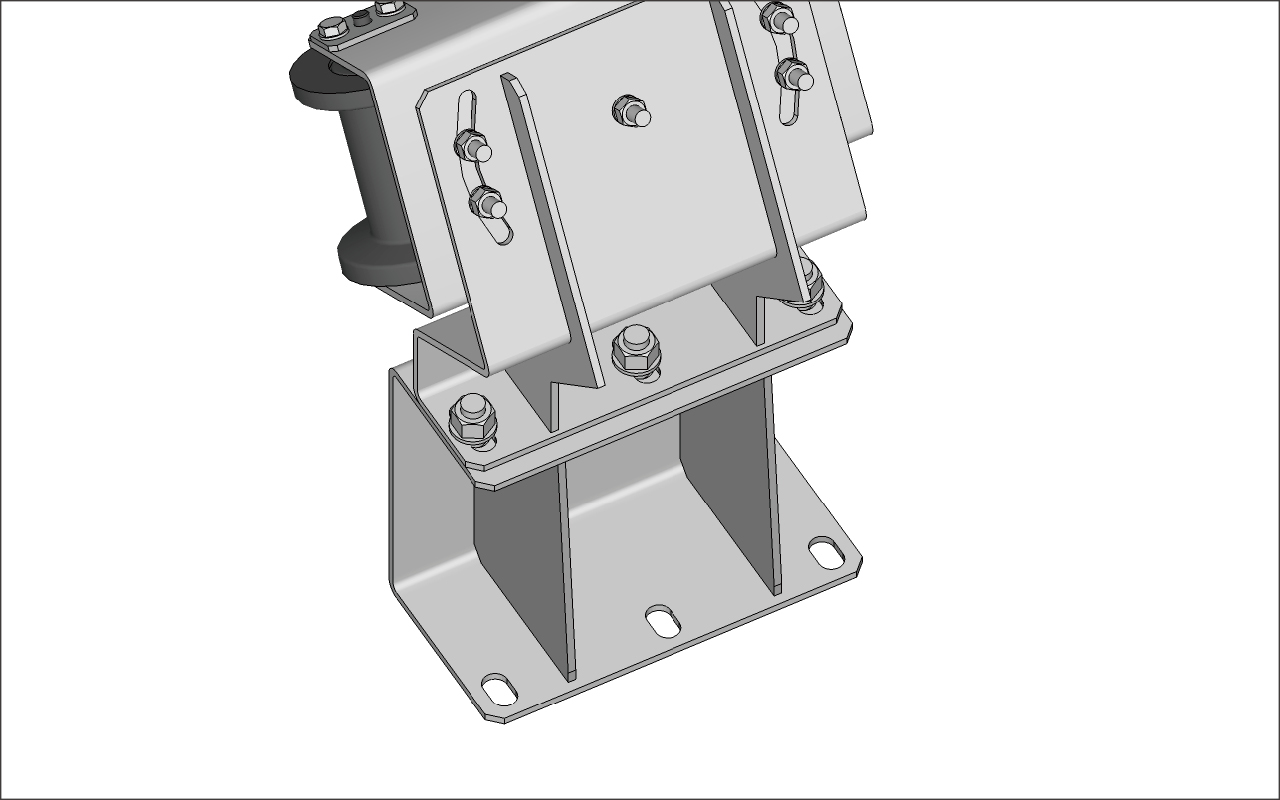

※Adjustable serpentine allowance with two long holes at the top and bottom!

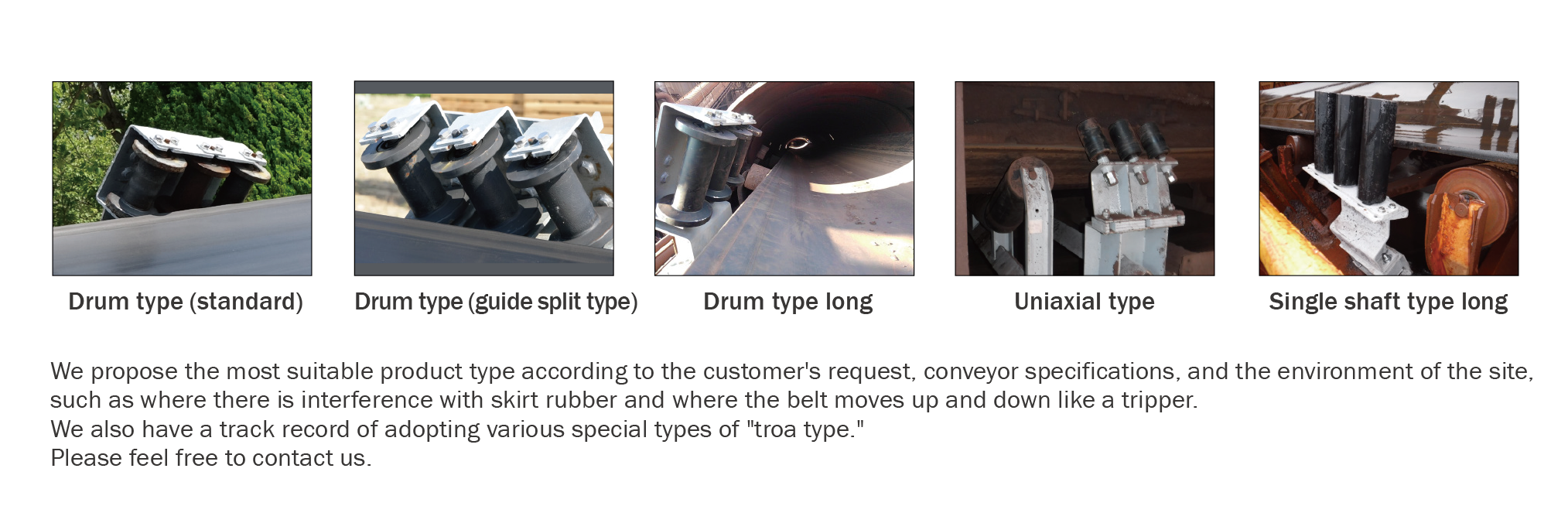

Extensive range of variations to suit customer sites
