Carrier Idler
JC-type and JC-Z-type
Application・Function
This is an Idler that supports the Carrier side of the Belt which conveys “loose goods” such as crushed stone, soil, sand, gravel, ore, and grains.
Selection Guide
The Trough Angle is generally 30°. Select a Trough Angle 20° for large apparent Specific Gravity and a Trough Angle 45° for small apparent specific gravity of. Please inquire about 35° and Trough Angles that are not indicated, which can also be produced by order-accepted production.
Use Roller
Carrier Roller type C
Idler Model Number
Stand Model Number

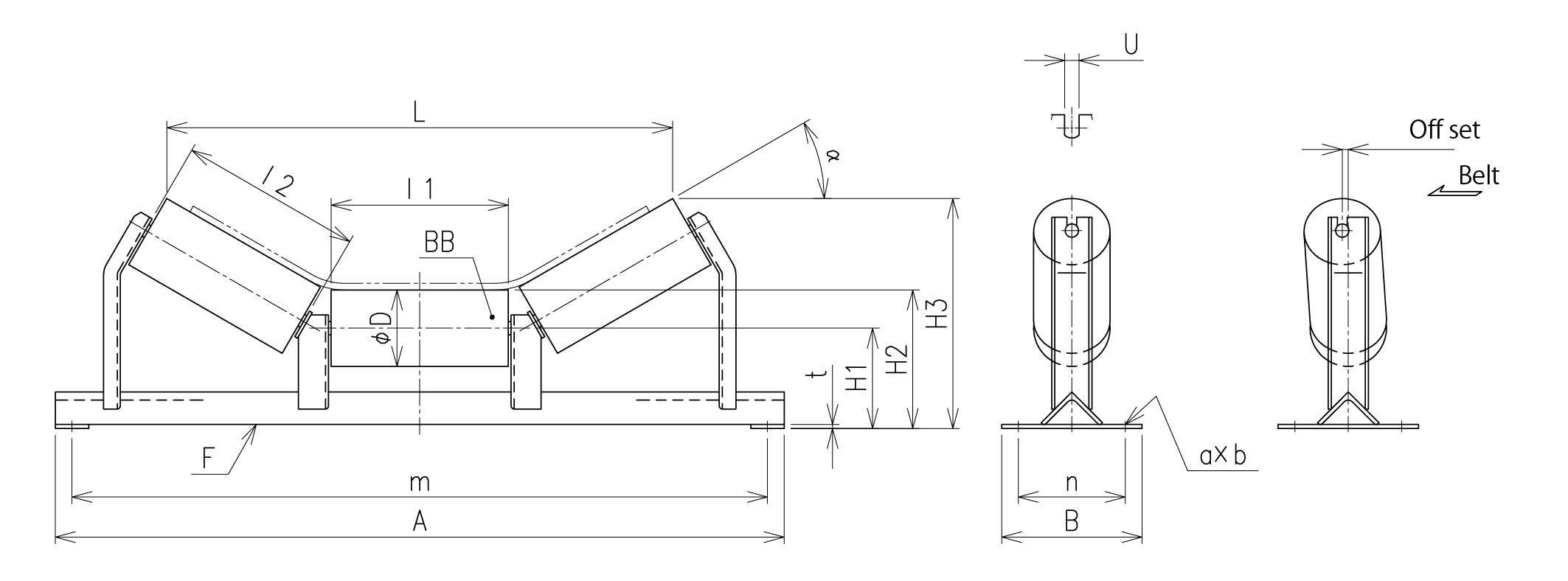

Outline Dimension
Common Dimension
(mm)
| B W | Model | H1 | H2 | m | A | n | B | D | l 1 | l 2 | U | t | a×b | F | BB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 400 | JC-3**-40 | 125 | 170 | 640 | 690 | 140 | 190 | 89.1 | 145 | 153 | 14.5 | 6 | 15×25 | L 50×50×6 | 6204ZZ |
| 450 | JC-3**-45 | 125 | 170 | 690 | 740 | 140 | 190 | 89.1 | 165 | 173 | 14.5 | 6 | 15×25 | L 50×50×6 | 6204ZZ |
| 500 | JC-3**-50 | 125 | 170 | 740 | 790 | 140 | 190 | 89.1 | 180 | 188 | 14.5 | 6 | 15×25 | L 50×50×6 | 6204ZZ |
| 600 | JC-3**-60 | 140 | 185 | 840 | 890 | 150 | 200 | 89.1 | 210 | 218 | 14.5 | 6 | 15×25 | L 50×50×6 | 6204ZZ |
| 750 | JC-3**-75 | 150 | 207 | 1040 | 1090 | 160 | 210 | 114.3 | 265 | 273 | 14.5 | 6 | 15×25 | L 65×65×6 | 6204ZZ |
| 900 | JC-3**-90 | 150 | 207 | 1190 | 1240 | 160 | 210 | 114.3 | 315 | 323 | 14.5 | 6 | 15×25 | L 75×75×6 | 6204ZZ |
| 1050 | JC-3**-105 | 180 | 250 | 1340 | 1390 | 180 | 230 | 139.8 | 370 | 380 | 18.5 | 9 | 15×25 | L 75×75×6 | 6205ZZ |
| 1200 | JC-3**-120 | 180 | 250 | 1490 | 1540 | 180 | 230 | 139.8 | 420 | 430 | 18.5 | 9 | 15×25 | L 90×90×7 | 6205ZZ |
| 1400 | JC-3**-140 | 250 | 333 | 1730 | 1795 | 280 | 340 | 165.2 | 500 | 510 | 22.5 | 9 | 19×32 | L 100×100×10 | 6206ZZ |
| 1600 | JC-3**-160 | 250 | 333 | 1930 | 1995 | 280 | 340 | 165.2 | 580 | 590 | 22.5 | 9 | 19×32 | L 130×130×9 | 6206ZZ |
| 1800 | JC-3**-180 | 280 | 363 | 2220 | 2285 | 330 | 390 | 165.2 | 650 | 660 | 25.5 | 9 | 19×32 | L 130×130×9 | 6207ZZ |
| 2000 | JC-3**-200 | 280 | 363 | 2420 | 2485 | 330 | 390 | 165.2 | 730 | 740 | 25.5 | 9 | 19×32 | L 130×130×12 | 6207ZZ |
Various dimensions of by Trough Angle (α)
(mm)
| B W | Model | α=20° | α=30° | α=35° | α=45° | Weight（kg） | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H3 | L | H3 | L | H3 | L | H3 | L | α=20° | α=30° | α=35° | α=45° | |||
| 400 | JC-3**-40 | 223 | 461 | 246 | 423 | 256 | 401 | 276 | 389 | 11.3 | 11.4 | 11.5 | 11.9 | |
| 450 | JC-3**-45 | 230 | 518 | 256 | 477 | 267 | 453 | 290 | 437 | 12.1 | 12.3 | 12.4 | 12.8 | |
| 500 | JC-3**-50 | 235 | 562 | 263 | 518 | 276 | 493 | 301 | 473 | 12.7 | 12.9 | 12.9 | 13.4 | |
| 600 | JC-3**-60 | 260 | 648 | 293 | 600 | 308 | 572 | 337 | 546 | 14.3 | 14.5 | 14.5 | 15.1 | |
| 750 | JC-3**-75 | 301 | 798 | 344 | 756 | 363 | 721 | 398 | 678 | 22.4 | 23.0 | 23.1 | 24.0 | |
| 900 | JC-3**-90 | 318 | 942 | 369 | 893 | 391 | 853 | 434 | 799 | 26.3 | 26.9 | 27.0 | 28.0 | |
| 1050 | JC-3**-105 | 381 | 1115 | 441 | 1053 | 467 | 1005 | 516 | 934 | 37.6 | 38.4 | 38.7 | 40.0 | |
| 1200 | JC-3**-120 | 398 | 1259 | 466 | 1190 | 495 | 1137 | 551 | 1055 | 45.2 | 46.1 | 46.4 | 47.6 | |
| 1400 | JC-3**-140 | 508 | 1490 | 589 | 1414 | 625 | 1352 | 690 | 1247 | 77.8 | 80.2 | 80.9 | 83.4 | |
| 1600 | JC-3**-160 | 535 | 1720 | 629 | 1633 | 670 | 1563 | 747 | 1440 | 91.3 | 93.8 | 94.6 | 97.2 | |
| 1800 | JC-3**-180 | 589 | 1922 | 694 | 1824 | 741 | 1747 | 833 | 1633 | 107.4 | 110.2 | 111.1 | 114.5 | |
| 2000 | JC-3**-200 | 617 | 2152 | 734 | 2042 | 786 | 1959 | 890 | 1826 | 130.4 | 133.4 | 134.4 | 137.9 | |
