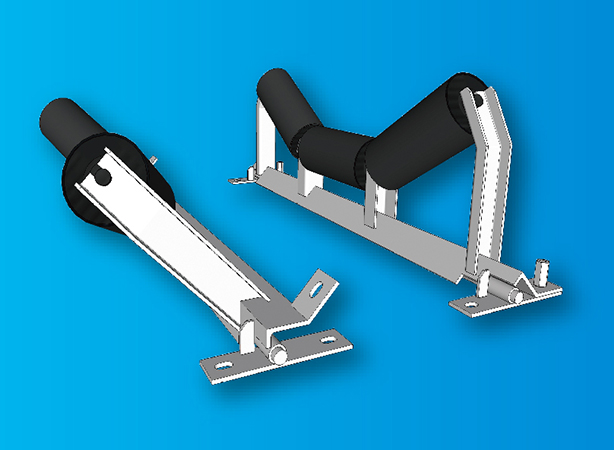

Tilt Carrier Idler
JDC type
Application・Function
This Idler can be tilted and hazed toward the Belt travelling direction, and be useful for “shortening work time of replacement ” and “reducing hazard rate” when replacing the Roller.
Selection Guide
Use this Idler any points including impact section wherever reduction of replacement work time and hazardous risk, maybe effective for limited access area. Please inquire about Trough Angles and forward tilt types that are not shown in the table, as they can also be manufactured by order-accepted production.
Use Roller
Career Roller C type
Impact Roller KC-M type

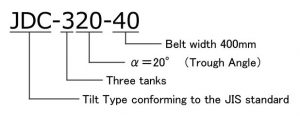

Idler Model Number

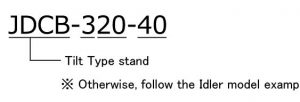

Stand Model Number

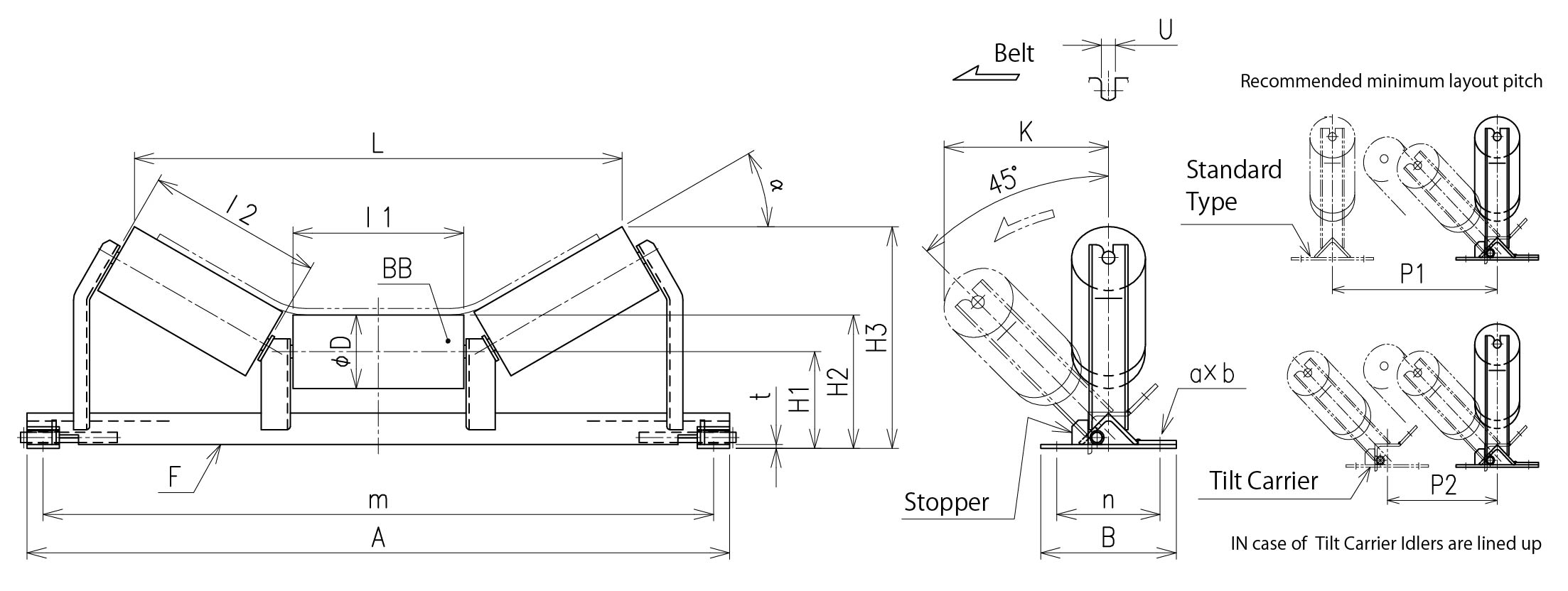

Outline Dimension
Common dimension
(mm)
| B W | Model | H1 | H2 | m | A | n | B | D | L1 | L2 | U | t | a×b | F | BB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 400 | JDC-3**-40 | 125 | 170 | 640 | 690 | 140 | 190 | 89.1 | 145 | 153 | 14.5 | 6 | 15×25 | L 50×50×6 | 6204ZZ |
| 450 | JDC-3**-45 | 125 | 170 | 690 | 740 | 140 | 190 | 89.1 | 165 | 173 | 14.5 | 6 | 15×25 | L 50×50×6 | 6204ZZ |
| 500 | JDC-3**-50 | 125 | 170 | 740 | 790 | 140 | 190 | 89.1 | 180 | 188 | 14.5 | 6 | 15×25 | L 50×50×6 | 6204ZZ |
| 600 | JDC-3**-60 | 140 | 185 | 840 | 890 | 150 | 200 | 89.1 | 210 | 218 | 14.5 | 6 | 15×25 | L 50×50×6 | 6204ZZ |
| 750 | JDC-3**-75 | 150 | 207 | 1040 | 1090 | 160 | 210 | 114.3 | 265 | 273 | 14.5 | 6 | 15×25 | L 65×65×6 | 6204ZZ |
| 900 | JDC-3**-90 | 150 | 207 | 1190 | 1240 | 160 | 210 | 114.3 | 315 | 323 | 14.5 | 6 | 15×25 | L 75×75×6 | 6204ZZ |
| 1050 | JDC-3**-105 | 180 | 250 | 1340 | 1390 | 180 | 230 | 139.8 | 370 | 380 | 18.5 | 9 | 15×25 | L 75×75×6 | 6205ZZ |
| 1200 | JDC-3**-120 | 180 | 250 | 1490 | 1540 | 180 | 230 | 139.8 | 420 | 430 | 18.5 | 9 | 15×25 | L 90×90×7 | 6205ZZ |
| 1400 | JDC-3**-140 | 250 | 333 | 1730 | 1795 | 280 | 340 | 165.2 | 500 | 510 | 22.5 | 9 | 19×32 | L 100×100×10 | 6206ZZ |
| 1600 | JDC-3**-160 | 250 | 333 | 1930 | 1995 | 280 | 340 | 165.2 | 580 | 590 | 22.5 | 9 | 19×32 | L 130×130×9 | 6206ZZ |
| 1800 | JDC-3**-180 | 280 | 363 | 2220 | 2285 | 330 | 390 | 165.2 | 650 | 660 | 25.5 | 9 | 19×32 | L 130×130×9 | 6207ZZ |
| 2000 | JDC-3**-200 | 280 | 363 | 2420 | 2485 | 330 | 390 | 165.2 | 730 | 740 | 25.5 | 9 | 19×32 | L 130×130×12 | 6207ZZ |
Various dimensions of by Trough Angle (α)
(mm)
| B W | Model | P2 | α=20° | α=30° | α=45° | Weight（kg） | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H3 | L | K | P1 | H3 | L | K | P1 | H3 | L | K | P1 | α=20° | α=30° | α=45° | |||
| 400 | JDC-3**-40 | -210 | 223 | 461 | 160 | -255 | 246 | 423 | 180 | -285 | 276 | 389 | 205 | -310 | 11.8 | 12.0 | 12.5 |
| 450 | JDC-3**-45 | -210 | 230 | 518 | 170 | -265 | 256 | 477 | 190 | -295 | 290 | 437 | 215 | -330 | 12.7 | 12.8 | 13.4 |
| 500 | JDC-3**-50 | -210 | 235 | 562 | 175 | -270 | 263 | 518 | 195 | -300 | 301 | 473 | 220 | -335 | 13.2 | 13.4 | 13.9 |
| 600 | JDC-3**-60 | -230 | 260 | 648 | 195 | -290 | 293 | 600 | 215 | -320 | 337 | 546 | 245 | -355 | 14.9 | 15.0 | 15.6 |
| 750 | JDC-3**-75 | -280 | 301 | 798 | 230 | -340 | 344 | 756 | 260 | -370 | 398 | 678 | 295 | -420 | 23.0 | 23.6 | 24.6 |
| 900 | JDC-3**-90 | -280 | 318 | 942 | 240 | -350 | 369 | 893 | 270 | -380 | 434 | 799 | 315 | -440 | 27.8 | 28.4 | 29.5 |
| 1050 | JDC-3**-105 | -340 | 381 | 1115 | 285 | -420 | 441 | 1053 | 320 | -450 | 516 | 934 | 375 | -525 | 39.2 | 40.0 | 41.6 |
| 1200 | JDC-3**-120 | -340 | 398 | 1259 | 295 | -450 | 466 | 1190 | 340 | -480 | 551 | 1055 | 400 | -570 | 47.2 | 48.1 | 49.7 |
| 1400 | JDC-3**-140 | -440 | 508 | 1490 | 370 | -550 | 589 | 1414 | 430 | -600 | 690 | 1247 | 505 | -690 | 80.3 | 82.8 | 86.1 |
| 1600 | JDC-3**-160 | -440 | 535 | 1720 | 400 | -580 | 629 | 1633 | 460 | -630 | 747 | 1440 | 545 | -740 | 94.5 | 97.0 | 100.5 |
| 1800 | JDC-3**-180 | -440 | 589 | 1922 | 430 | -600 | 694 | 1824 | 510 | -670 | 833 | 1633 | 605 | -785 | 110.2 | 113.1 | 116.9 |
| 2000 | JDC-3**-200 | -440 | 617 | 2152 | 460 | -640 | 734 | 2042 | 540 | -710 | 890 | 1826 | 645 | -845 | 133.8 | 136.8 | 140.9 |
