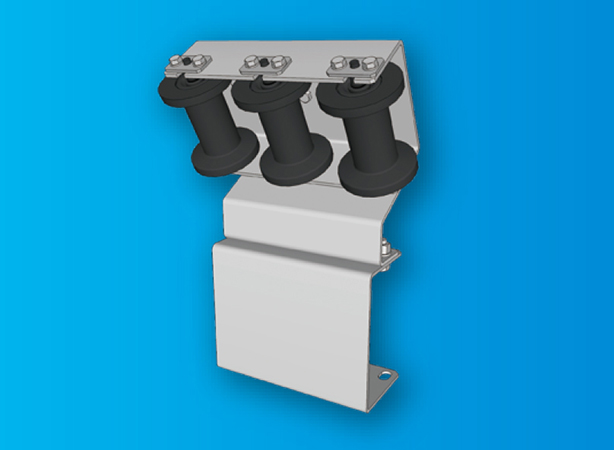

Trois type Guide Idler

TG type

Application・Function

This is a Guide Idler in which three drum-shaped Guide Rollers are lined up, and the Belt is strongly adjusted for meandering and deviation by thrust generated by tilting the Roller in the Belt advancing direction.

Selection Guide

Install the product in a place where the Belt is serpentine or deviated. This product is equipped with shim plates (t9×3) for height adjustment, and long holes for fixing bolts are provided above and below the bracket, so that the serpentine path can be adjusted finely.

Use Roller

Trois type Guide Roller TGR type

Idler Model Number

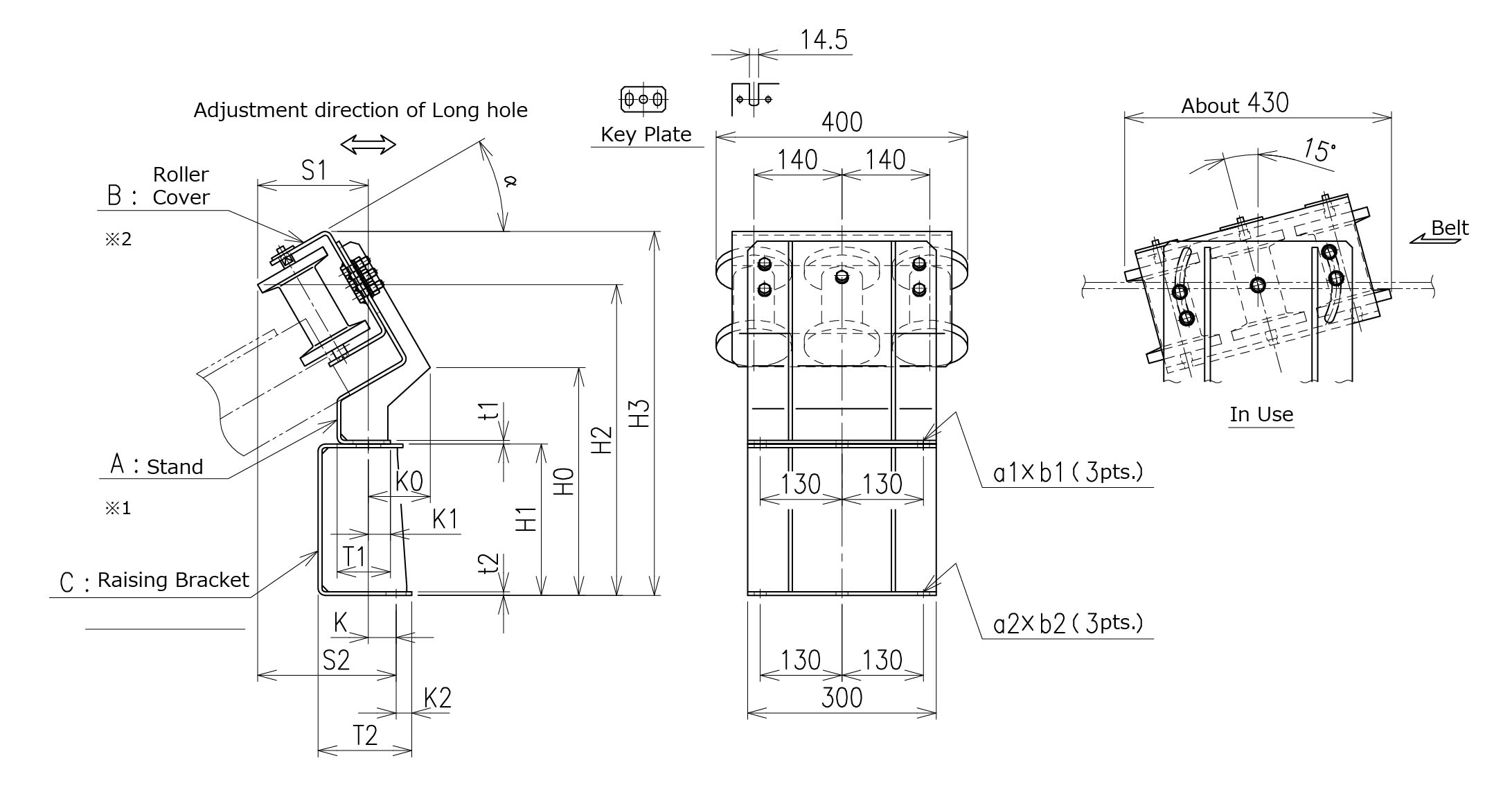

Outline Dimension

For Trough Angle 20° (α= 20°)

(mm)

B W	Model	T1	t1	K0	K1	H0	H2	H3	S1	a1×b1	K	T2	t2	K2	H1	S2	a2×b2	Weight（kg）※3
B W	Model	T1	t1	K0	K1	H0	H2	H3	S1	a1×b1	K	T2	t2	K2	H1	S2	a2×b2	A	B	C	Total
400	TG-20°-40	85	6	105	35	113	294	358	144	49×19	–	–	–	–	–	–	–	8.5	6.5	–	36.0
450	TG-20°-45	85	6	105	35	113	294	358	144	49×19	–	–	–	–	–	–	–	8.5	6.5	–	36.0
500	TG-20°-50	85	6	105	35	113	294	358	144	49×19	–	–	–	–	–	–	–	8.5	6.5	–	36.0
600	TG-20°-60	90	6	100	35	149	328	393	149	49×19	0	110	6	25	72	149	32×19	6.8	6.5	4.9	39.2
750	TG-20°-75	90	6	100	35	197	376	441	149	49×19	30	140	6	25	120	179	32×19	6.8	6.5	6.5	40.8
900	TG-20°-90	90	6	100	35	214	393	458	149	49×19	33	143	6	25	137	182	32×19	6.8	6.5	7.0	41.3
1050	TG-20°-105	90	6	100	35	272	451	516	149	49×19	35	140	6	25	195	184	32×19	6.8	6.5	7.2	41.5
1200	TG-20°-120	90	6	100	35	289	468	533	149	49×19	38	143	6	25	212	187	32×19	6.8	6.5	8.8	43.1

For Trough Angle 30°（α＝30°）

(mm)

B W	Model	T1	t1	K0	K1	H0	H2	H3	S1	a1×b1	K	T2	t2	K2	H1	S2	a2×b2	Weight（kg）※3
B W	Model	T1	t1	K0	K1	H0	H2	H3	S1	a1×b1	K	T2	t2	K2	H1	S2	a2×b2	A	B	C	Total
400	TG-30°-40	85	6	162	35	173	305	389	176	49×19	–	–	–	–	–	–	–	9.0	6.5	–	36.5
450	TG-30°-45	85	6	162	35	173	305	389	176	49×19	–	–	–	–	–	–	–	9.0	6.5	–	36.5
500	TG-30°-50	85	6	162	35	173	305	389	176	49×19	–	–	–	–	–	–	–	9.0	6.5	–	36.5
600	TG-30°-60	85	6	111	35	222	354	438	176	49×19	9	119	6	25	100	185	32×19	8.2	6.5	5.8	41.5
750	TG-30°-75	85	6	111	35	272	404	488	176	49×19	32	142	6	25	150	208	32×19	8.2	6.5	7.5	43.2
900	TG-30°-90	85	6	111	35	297	429	513	176	49×19	38	143	6	25	175	214	32×19	8.2	6.5	7.9	43.6
1050	TG-30°-105	85	6	111	35	363	495	579	176	49×19	44	149	6	25	241	220	32×19	8.2	6.5	8.6	44.3
1200	TG-30°-120	85	6	111	35	388	520	604	176	49×19	51	156	6	25	266	227	32×19	8.2	6.5	10.6	46.3

※1 The stands are BW400 to 500 common parts and BW600 to 1200 common parts for individual troughs.
※2 All Guide Roller covers are common.　　※3 The total weight includes three Guide Rollers.
