Impact Roller (M type)
KC-M types
Application・Function

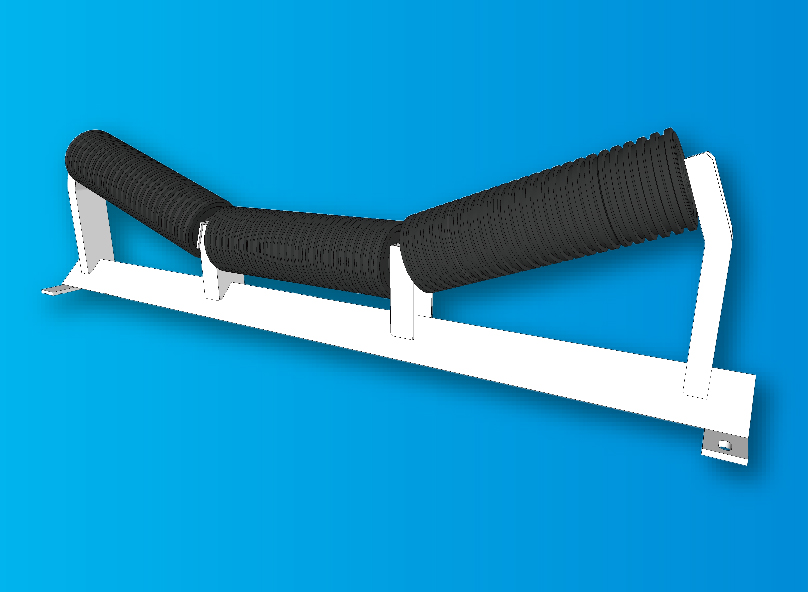

This Roller is used in the Idler at the point (impact section) where conveyed objects fall, such as hoppers and chute openings, on the conveyor. The groove-shaped impact rubber is baked on a steel tube Roller, so that the surface does not peel off and the impact of dropping is mitigated.
Selection Guide
Use the product in an impact Idler with a low apparent specific gravity of 1.0t per m3 or less, or in a place where the impact of dropping is low.
Model Number

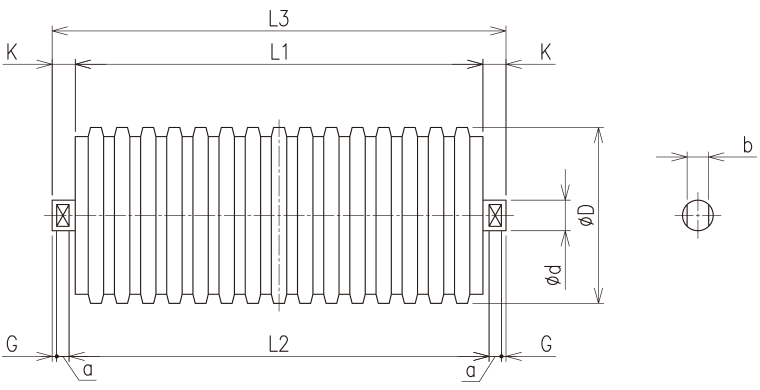

Outline Dimension
(mm)
|
B W
|
Model
|
D
|
L1
|
L2
|
L3
|
K
|
G
|
a
|
b
|
d
|
BB
|
Weight（kg）
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 400 | KC-40-M | 100 | 145 | 153 | 175 | 15 | 3 | 8 | 14 | 20 | 6204ZZ | 2.1 |
| 450 | KC-45-M | 100 | 165 | 173 | 195 | 15 | 3 | 8 | 14 | 20 | 6204ZZ | 2.3 |
| 500 | KC-50-M | 100 | 180 | 188 | 210 | 15 | 3 | 8 | 14 | 20 | 6204ZZ | 2.5 |
| 600 | KC-60-M | 100 | 210 | 218 | 240 | 15 | 3 | 8 | 14 | 20 | 6204ZZ | 2.8 |
| 750 | KC-75-M | 115 | 265 | 273 | 295 | 15 | 3 | 8 | 14 | 20 | 6204ZZ | 3.9 |
| 900 | KC-90-M | 115 | 315 | 323 | 345 | 15 | 3 | 8 | 14 | 20 | 6204ZZ | 4.4 |
| 1050 | KC-105-M | 140 | 370 | 380 | 410 | 20 | 4 | 11 | 18 | 25 | 6205ZZ | 7.6 |
| 1200 | KC-120-M | 140 | 420 | 430 | 460 | 20 | 4 | 11 | 18 | 25 | 6205ZZ | 8.4 |
| 1400 | KC-140-M | 166 | 500 | 510 | 540 | 20 | 4 | 11 | 22 | 30 | 6206ZZ | 13.6 |
| 1600 | KC-160-M | 166 | 580 | 590 | 620 | 20 | 4 | 11 | 22 | 30 | 6206ZZ | 15.4 |
| 1800 | KC-180-M | 166 | 650 | 660 | 690 | 20 | 4 | 11 | 25 | 35 | 6207ZZ | 18.7 |
| 2000 | KC-200-M | 166 | 730 | 740 | 770 | 20 | 4 | 11 | 25 | 35 | 6207ZZ | 20.7 |
