Type B Roller (special Roller)

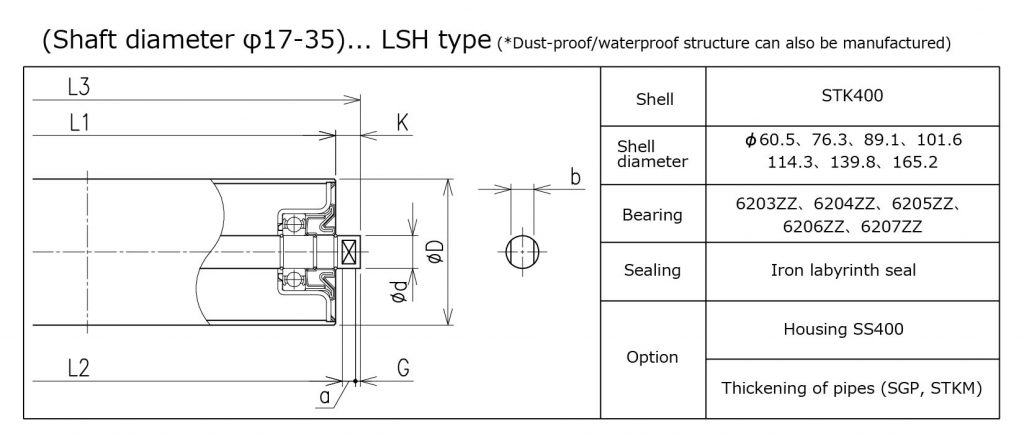

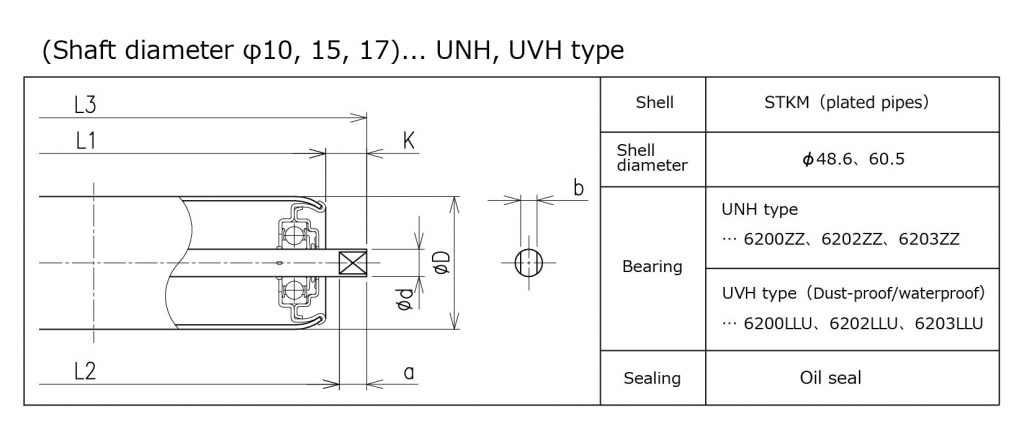

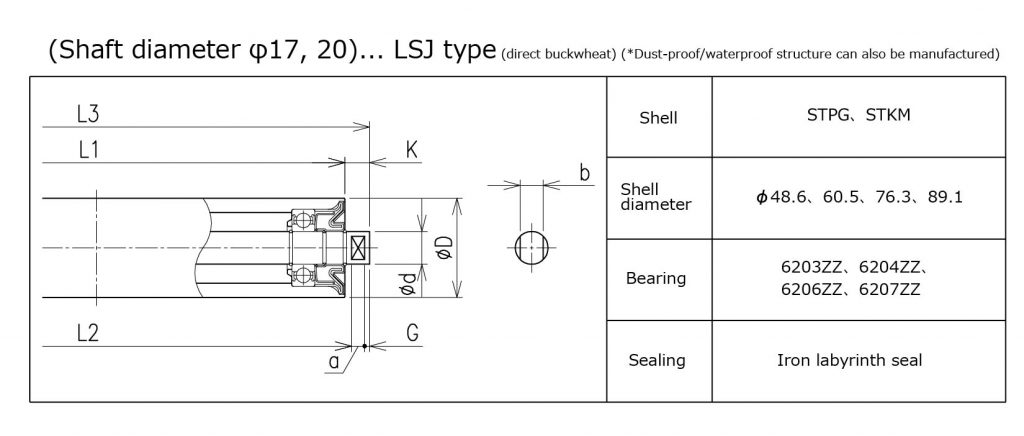

UNH,UVH, LSH and LSJ types

List of combinations of Shaft diameter (bearing model number) and Shell outer diameter

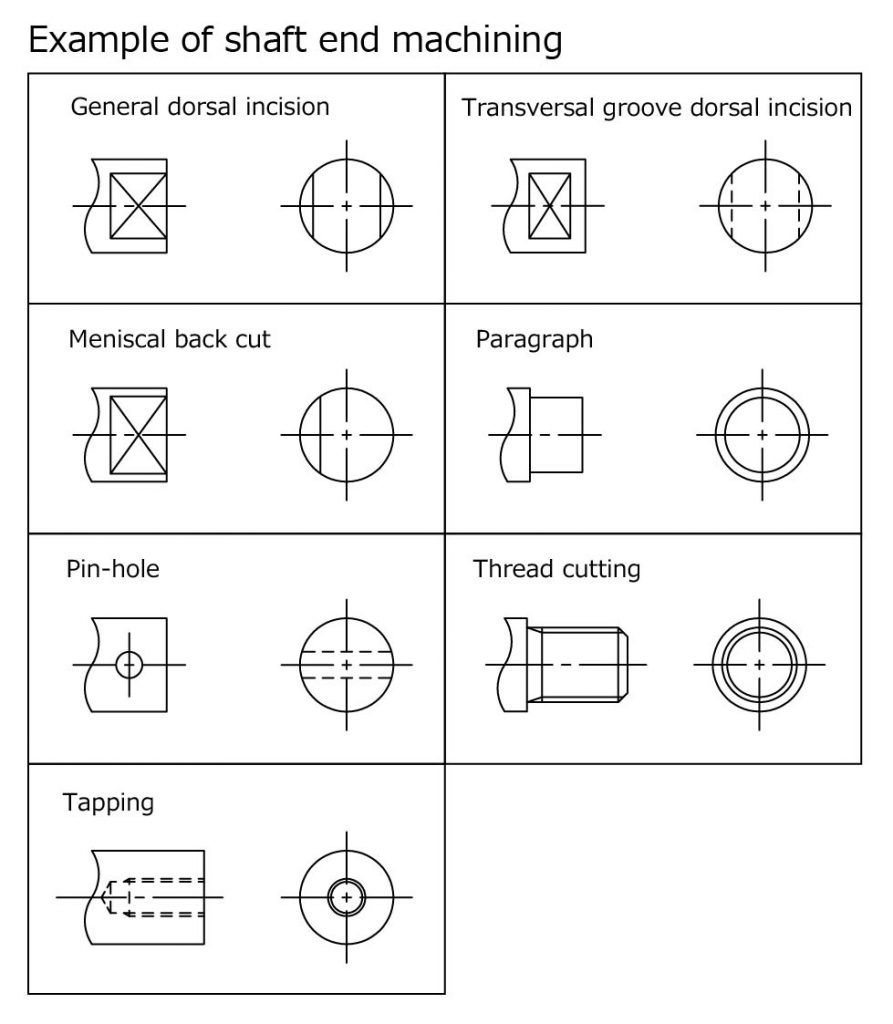

A separate Roller with different standard dimensions is designated as a “B-type Roller” in the JRC, and is compatible with production as shown in the table below. At the time of request, check the structural drawings of each Roller and instruct the desired dimensions, specifications, etc. It also supports special machining such as threading and pin holes at the shaft end. (See the following figure, machining example of shaft end.)

(mm)

Shaft diameter	Bearing model number	Roller structure	Minimum value of L1 that can be produced	Outside diameter of pipe
				φ48.6	φ60.5	φ76.3	φ89.1	φ101.6	φ114.3	φ139.8	φ165.2
				（1 1/2）	（2）	（2 1/2）	（3）	（3 1/2）	（4）	（5）	（6）
φ10	6200ZZ	UNH type UVH type	100	○	–	–	–	–	–	–	–
φ15	6202ZZ	UNH type UVH type	100	○	○	–	–	–	–	–	–
φ17	6203ZZ	UNH type UVH type	100	–	○	–	–	–	–	–	–
		LSH type	69	△	○	○	○	–	–	–	–
		LSJ type	64	△	○	○	○	–	–	–	–
φ20	6204ZZ	LSH type	76	–	△	○	○	○	○	–	–
φ20	6204ZZ	LSJ type	71	–	△	○	○	○	○	–	–
φ25	6205ZZ	LSH type	84	–	–	○	○	○	○	○	–
φ25	6205ZZ	LSJ type	79	–	–	○	○	○	○	○	–
φ30	6206ZZ	LSH type	92	–	–	△	○	○	○	○	○
φ30	6206ZZ	LSJ type	87	–	–	△	○	○	○	○	○
φ35	6207ZZ	LSH type	97	–	–	–	△	○	○	○	○
φ35	6207ZZ	LSJ type	92	–	–	–	△	○	○	○	○

○…Production is possible.　△…No housing　- …Production is impossible.
